Chinese Water Excavator for Sale / Amphibiou Excavator
| US$180,000.00-250,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DGAME26
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Medium-Sized
Condition
New
Weight
26000 Kg
Power
114 Kw
Transport Package
by Bulk Vessel
Trademark
Dragon
Origin
China
HS Code
8429521900
Production Capacity
50 Sets/Year
Product Description

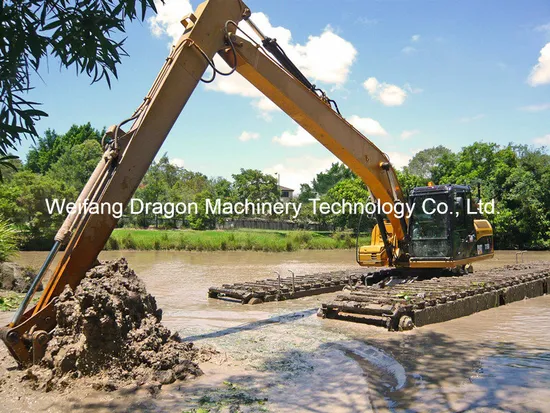

DRAGON amphibious excavator is one multifunctional excavator which is suitable for working in swamp, shallow water and land area. This kind of excavator is widely used for dredging work in rivers and lakes, resources and environment protection in wetlands and coastal areas.The track shoe and floating pontoon are strengthened specially to enable the amphibious excavator work in hard environment.
There is one replaceable joint unit between the excavator and floating pontoon which can make it equip with different brands of excavators.
To increase the stability of the amphibious excavator, two spuds can be installed on the floating pontoons.
The amphibious excavator can work with differend attachments which enlarges the working range.
Specification
| Model | DGAME15 | DGAME20 | DGAME26 | DGAME30 |
| Weight | 15000 kg | 20000 kg | 26000 kg | 30000 kg |
| Bucket Capacity | 0.25 m3 | 0.4 m3 | 0.9 m3 | 0.9 m3 |
| Installed Power | 56.5 kw | 89.3 kw | 114 kw | 114 kw |
| Walking Speed | 3.8 km/h | 3.1 km/h | 3.2 km/h | 3.1 km/h |
| Rotating Speed | 11 rpm | 11 rpm | 11 rpm | 11 rpm |
| Grade Ability | 30 o | 30 o | 30 o | 30 o |
| Max Digging Depth | 5870 mm | 7360 mm | 5700 mm | 7360 mm |
| Max Digging Radius | 8990 mm | 10810 mm | 9920 mm | 10810 mm |
| Pontoon Dimension | 6640 x 1300 x 1420 mm | 7170 x 1490 x 1700 mm | 8080 x 1490 x 1700 mm | 8290x 1800 x 1650 mm |
