China Best Quality 13.5 Ton Se135W New Shantui Hydraulic Excavator for Sale

Product Description

Product Description

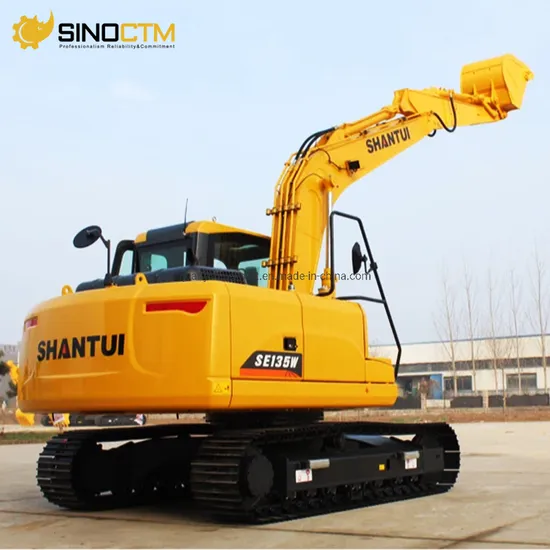

13.5 Ton SE135W with bucket capacity 0.55CBM Mini Excavator
SHANTUI SE135W equipped with WP4.1 engine which is powerful and reliable, low-cost-per-hour solution for your light to medium duty application. Featuring a balance of fuel-efficient and powerful, simplified hydraulic system, and robust frames and components, the SE135W provides you maximum profits with minimum cost..
Product Parameters

Model	SE135 (Standard version)	SE135W(engine version)	SE150 (Standard version)	SE215 (Standard version)
Overall dimensions
Overall length (mm)	7860	7860	7860	9625
Ground length (During transport) (mm)	4320	4320	4390	4915
Overall height (To the top of boom) (mm)	2800	2800	2860	3075
Overall width (mm)	2500	2500	2645	2800
Overall height (To top of cab) (mm)	2855	2855	2855	3055
Ground clearance of counterweight (mm)	915	915	915	1075
Minimum ground clearance (mm)	425	425	425	470
Tail turning radius (mm)	2380	2380	2380	2925
Track length (mm)	3645	3645	3645	4140
Track gauge (mm)	2000	2000	2000	2200
Track width (mm)	2500	2500	2500	2800
Standard track shoe width (mm)	500	500	500	600
Turntable width (mm)	2490	2490	2645	2725
Distance from slewing center to tail (mm)	2375	2375	2375	2920
Working range
Maximum digging height (mm)	8495	8495	8670	10095
Maximum dumping height (mm)	6060	6060	6210	7190
Maximum digging depth (mm)	5490	5490	5490	6490
Maximum vertical digging depth (mm)	4625	4625	4625	5915
Maximum digging distance (mm)	8300	8300	8325	9860
Maximum digging distance at ground level (mm)	8175	8175	8195	9675
Working device minimum turning radius (mm)	2445	2445	2395	2970
Maximum lifting height of bulldozer blade (mm)	-	-	-	-
Maximum digging depth of bulldozer blade (mm)	-	-	-	-
Engine
Model	QSF3.8T(China III)	WP4.1(China III)	QSF3.8T (China-III)	QSB7 (China-III)
Type	4-cylinder inline and water-cooled and turbocharged	Inline 4-cylinder, high pressure common rail, and water-cooled and turbocharged	4-cylinder, high pressure common rail, and water-cooled and turbocharged	6-cylinder, high pressure common rail, and water-cooled and turbocharged
Displacement (L)	3.76	3.76	3.76	6.7
Rated power (kW/rpm)	86/2200	92/2200	86/2200	124/2050
Hydraulic system
Type of hydraulic pump	Variable displacement duplex plunger pump	Variable displacement duplex plunger pump	Variable displacement duplex plunger pump	Variable displacement duplex plunger pump
Rated working flow (L/min)	2x130	2x130	2x130	2x213
Bucket
Bucket capacity (m³)	0.4~0.65(0.55)	0.4~0.65(0.55)	0.65	0.9
Swing system
Maximum swing speed (r/min)	11.3	11.3	11.3	11
Brake type	Mechanically applied and pressure released	Mechanically applied and pressure released	Mechanically applied and pressure released	Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN)	70	70	70	135/146
Bucket digging force (KN)	97	97	97	99/107
Operating weight and ground pressure
Operating weight (kg)	13500	13500	14500	20800
Ground pressure (kPa)	41.5	41.5	43.8	47.5
Traveling system
Traveling motor	Axial variable displacement plunger motor	Axial variable displacement plunger motor	Axial variable displacement plunger motor	Axial variable displacement plunger motor
Traveling speed (km/h)	3.25/5.2	3.25/5.3	3.25/5.2	3.15/5.15
Traction force (KN)	118	118	118	214
Gradeability	70%(35°)	70%(35°)	70%(35°)	70%(35°)
Tank capacity
Fuel tank capacity (L)	220	245	220	330
Cooling system (L)	20	20	20	28
Engine oil capacity (L)	12	12	12	22
Hydraulic oil tank/system capacity (L)	177/205L	177/205L	177/205	270/400
