Extrusion Bottle Making Blowing Blow Molding Machine for HDPE 1L Bottle

Product Description

Product Description

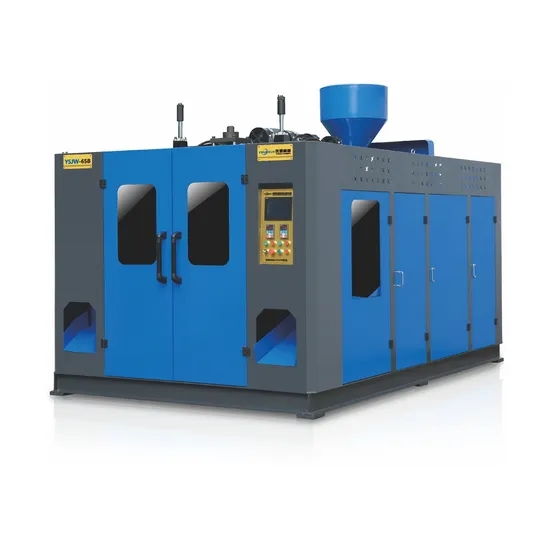

this is full automatic extrusion blow molding machine for max. 3000ml HDPE PP hollow products.
this machine is suitable for blowing HDPE hollow products between 10ml and 3000ml.
Our machine production process is stable, energy-saving, and has a long service life.
This machine has three models: 1-cavity, 2-cavity, 3-cavity,4-cavity,6-cavity.
Machine pictures
Detailed Photos

Product Parameters

Extrusion blow molding machine
general information	Unit	Parameter
Applicable materials	/	PE,PP
head number	PCS	2
station	PCS	2
Max.Product Volume	L	3
Dry cycle	Pcs/h	1000*2
Screw Diameter	mm	65
Screw L/D ratio	L/D	25
Extrusion motor power	KW	15
Screw heating capacity	KW	15
Number of heating zone	Zone	3
Output of HDPE	Kg/hr	70
Power of servo oil pump motor	KW	14
Clamping force	KN	50
Mold thiceness	MM	110-210
Size of Mold	(WxH)mm	290*320
Maximum diameter of extrusion outlet	mm	130
Die heat capacity	KW	6
Blowing pressure	Mpa	0.6
Air consumption	M3/Min	0.6
Weight of machine	Ton	5.4
Size of machine(LxWxH)	mm	3500*2200*2100

Packaging & Shipping

Company Profile
TAIZHOU YOUSHUO CO., LTD. mainly produces and sells blow molding machines, extrusion blow molding machines, auxiliary machines, and molds. We provide customers with complete packaging bottle production line services.Our company's blow molding machine is suitable for producing PET, PP and other plastic bottles. These plastic bottles are widely used in packaging industries such as pharmaceuticals, cosmetics, nuts, mineral water, beverages, oils, detergents, beverages, and food. Our company's bottle blowing machine can produce various bottles ranging from 5ml to 25000ml.Our company's extrusion blow molding machine can produce hollow plastic products ranging from 50ml to 120L for you. Coverage industries: petrochemical, pharmaceutical packaging, food packaging, cosmetics packaging, automotive, sports, hardware tools and other industries. Applicable raw materials: PE PP,PETG,PS,ABS,EVA····Our fully electric blow molding machine has reached the leading level in the industry, and our products are exported to more than 50 countries abroad. We have received very positive feedback from our clients over the course of more than 10 years of cooperation. The stability and durability have been unanimously recognized by customers.
After Sales Service
Customers can choose free online guidance services, or can choose our company to send engineers to your factory for debugging services, which is chargeable. Customers can also choose to send their own workers to our factory for free learning.
FAQ
Q: Where is your factory located?
A: Our factory is located in Taizhou, China
Q: What are your trade terms?
A: Usually FOB Ningbo price. If the customer has a request, a partial sight letter of credit can be issued
Q: What are your payment terms?
A: After order confirmation, pay a down payment of 30%, the advance payment is related to the customer's project. Pay the full balance before shipment.
Q: What is your delivery time?
A: Usually within 30-60 days, depending on your project.
Q: How do customers install the goods after receiving them?
A: Customers can choose free online guidance services, or can choose our company to send engineers to your factory for debugging services, which is chargeable. Customers can also choose to send their own workers to our factory for free learning.
Q: Guaranteed time?
A: One year warranty, not man made.
