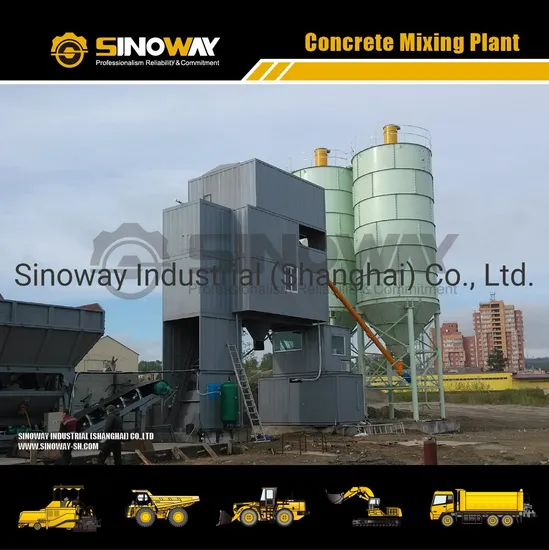

150 M3/H Ready Mix Concrete Mixing Plant, Concrete Batching Plant
| US$175,000.00-185,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SWCBP1800
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
150m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000
Condition
New
Color
White
Cycle Time
45s
Mix Capacity
3.0 M3
Total Power
272kw
Screw Conveyor
219mm
Cement Silo
50 or 100 Ton
Power Source
380V/50Hz/3 Phase
Transport Package
Container
Specification
ISO9001
Trademark
Sinoway
Origin
China
HS Code
84743100
Production Capacity
50 Sets Per Month
Product Description
Sinoway concrete mixing plant is a combinational device used to mix concrete in centralized. There are many different types and components of the concrete mixing plants, the basic structure includes: Feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments (such as air compressor, water pump etc. ). They are used to transport, feed, store, batch, weigh, mix and discharge the concrete raw materials: Cement, water, sand, crushed stone, admixture and additive.
Sinoway treat Service as a significant segment in our value chain, from the moment you get in touch with Sinoway, our commitment to service is a complete guarantee that we will make every effort to be there for you. That is our pledge to you. We wish to not just satisfy but surpass the expectations of our customers.
Technical Specification
| Model | SWCBP600 | SWCBP900 | SWCBP1200 | SWCBP1800 | SWCBP2000 | |
| Productivity (m3/h) | 50 | 75 | 120 | 150 | 200 | |
| Mixer | Type | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
| Power(kW) | 2×22 | 2×30 | 2×37 | 2×55 | 2×75 | |
| Exceeding Capacity (m³ ) | 1 | 1.5 | 2 | 3 | 4 | |
| Grain Size (mm) | ≤60 | ≤80 | ≤80 | ≤80 | ≤80 | |
| Batcher | Hopper Capacity (m³) | 12 | 15 | 20 | 30 | 40 |
| Hopper Quantity | 3 | 4 | 4 | 4 | 4 | |
| Conveyor Capacity (t/h) | 400 | 400 | 500 | 600 | 600 | |
| Weighing Scope Accuracy | Aggregate (kg) | 2500±2% | 3500±2% | 4500±2% | 7000±2% | 2×4500±2% |
| Cement (kg) | 600±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | |
| Cols ash (kg) | 200±1% | 300±1% | 600±1% | 800±1% | 1000±1% | |
| Water (kg) | 300±1% | 400±1% | 600±1% | 800±1% | 1000±1% | |
| Additive (kg) | 30±1% | 30±1% | 40±1% | 50±1% | 50±1% | |
| Total Power (kW) | 99 | 120 | 142 | 190 | 240 | |
| Unloading Height (m) | ≥3.9 | ≥3.9 | ≥3.9 | ≥3.9 | ≥3.9 | |
