Dispatch Winch Maintenance Easy And Efficient Machinery And Equipment
Basic Info.
Model NO.
JD-4 Dispatching Winch
Type
Electric Winch
Driven Type
DC
Speed
Fast
Carrying Capacity
Weight Level
Tonnage
1T
Reel Number
1
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, ISO 9001
Standard
National Standards
Wire Rope Static Tension Kn
40
Min. Rope Speed(M/S)
0.95
Max. Rope Speed(M/S)
1.48
Average Rope Speed(M/S)
1.22
Drum Size (mm) (Dia.*Width)(mm)
580*600
Total Reduction Ratio
32.75
Wire Rope Dia.(mm)
21.5
Rope Length(M)
850
Weight(with Motor)(Kg)
3750
Model
Ybk3-280m-6
Transport Package
Wooden Case or Carton Case
Specification
JD-4 Dispatching Winch
Trademark
zhongmei
Origin
Shandong, China
Production Capacity
10 Sets Per Month
Product Description
Product Description
Introduction of Dispatch Winch Maintenance Easy And Efficient Machinery And Equipment JD Mining Dispatching Winch is mainly applicable to coalface and excavating face loading station dispatch tramcar underground coal mine, middle laneway carrying tramcar and other transportation, also it can be used for metallurgy mine and construction hoisting.
It is strictly prohibited to brake at both ends and be used in man-riding or lifting.Flameproof design is suitable for the mine within coal dust and mash gas. All electrical equipment must have the security card during a validity period.
JD Dispatching Winch is widely used to pull the tramcar underground.The explosion-proof electric device can be applicable for the colliery and other mine with gas danger. zmwm17
Product Parameters
Parameter of Dispatch Winch Maintenance Easy And Efficient Machinery And Equipment
| Model specification | JD-1 | JD-1.6 | JD-2.5 | JD-4 | |
| Wire rope static tension KN | 10 | 16 | 25 | 40 | |
| Rope speed(m/s) | Min. | 0.433 | 0.733 | 1.16 | 0.95 |
| Max. | 1.033 | 1.399 | 1.45 | 1.48 | |
| Average | 0.733 | 1.066 | 1.31 | 1.22 | |
| Wire rope size | Wire rope Dia.(mm) | 12.5 | 15 | 18.5 | 21.5 |
| Rope length(m) | 400 | 400 | 500 | 850 | |
| Drum size (mm) (Dia.*Width)(mm) | Φ224*304 | Φ310*400 | Φ620*580 | Φ580*600 | |
| Total reduction ratio | 41 | 32.5 | 42.24 | 32.75 | |
| Dimension (mm) | 1120*766*727 | 1435*1217*1255 | 1830*1794*1390 | 2200*1965*1425 | |
| Weight(with motor)(kg) | 542 | 1370 | 2500 | 3750 | |
| Flameproof motor | Model | YBJ-11.4 | YBJ-25 | YBJ-40 | YBK3-280M-6 |
| Power(KW) | 11.4 | 25 | 40 | 55 | |
| Turn number(r/min) | 1460 | 1465 | 1470 | 980 | |
| Voltage(V) | 380/660 | 380/660 | 380/660 | 380/660 | |
Detailed Photos

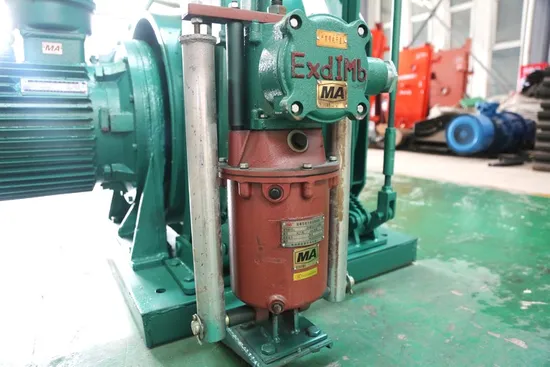

Pictures of Dispatch Winch Maintenance Easy And Efficient Machinery And Equipment
