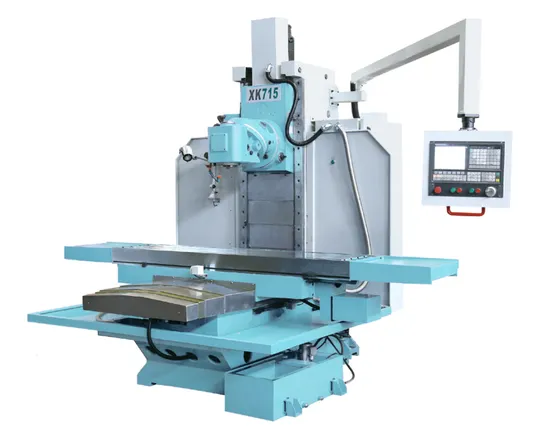

XK715/XK716 CNC bed-type milling machine
| US$3,988.00-15,898.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XK715/XK716
Type
Tool Milling Machine
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle hole taper
7:24 ISO 50
Spindle speed range
6-300,30-1500 r/min
Distance between spindle axis and table
8-660mm
Table feed-X/Y
2.5-3000mm/min
Table feed-Z
2.5-2500mm/min
Table rapid feed X/Y/Z
6000/6000/3000mm/min
Main motor power
11kw
Transport Package
Standard Export Packaging
Specification
7300/9000kg
Trademark
MFGSP
Origin
China
Production Capacity
2000sets/Year
Packaging & Delivery
Package Size
322.00cm * 242.00cm * 280.00cm
Package Gross Weight
7500.000kg
Product Description
CNC bed-type milling machineStandard equipment:
SIEMENS808D
Optional equipment:
The fourth axis CNC rotary table
CNC dividing head
CNC system:FANUC Mitsubishi,GSK980MDC
| Specification | Units | XK715 | XK716 |
| Spindle hole taper | 7:24 ISO 50 | ||
| Spindle speed range | r/min | 6-300,30-1500 | |
| Distance between spindle axis and column guideway | mm | 610 | 8-660 |
| Distance between spindle nose and table surface(V) | mm | 10-650 | 10-700 |
| Distance between spindle axis and table surface(H) | mm | 8-660 | |
| Table size | mm | 2100x500 | 2500x600 |
| T slots | mm | 4/20/100 | 5/20/100 |
| Table travel-X | mm | 1500 | 1800 |
| Table travel-Y | mm | 650 | 700 |
| Table feed-X/Y | mm/min | 2.5-3000 | |
| Table feed-Z | mm/min | 2.5-2500 | |
| Table rapid feed X/Y/Z | mm/min | 6000/6000/3000 | |
| Main motor power | kw | 11 | |
| Torque of X/Y/Z axis AC serve motor | Nm | 18/23/18 | |
| Cooling pump motor power | w | 90 | |
| Overal size | mm | 3220x2420x2800 | 4380x2520x2800 |
| Net weight | kg | 7300 | 9000 |
