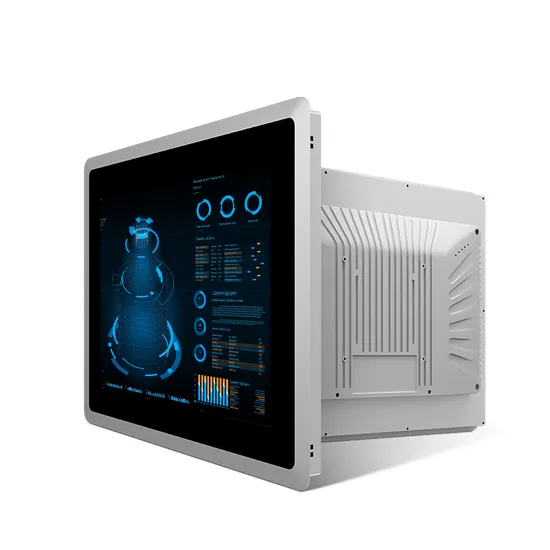

Bis Touch Panel Industrial PC Full Aluminum 1024X768 4: 3 15 Inch Touchscreen Embedded All-in-One PC Industrial Control PC
Basic Info.
Model NO.
SK-K15DR
Protection Rating
IP65
CPU
J1900,J6412,J4125,I3 I5 I7
Waterproof
IP65 Waterproof
Screen Type
10.4", 12.1", 15", 17", 19", LED Screen
Contrast Ratio
700:1
Screen Ratio
4:3
Touch Point
10 Point Touch
Response Time
Less Than 5ms
Heat Dissipasion
Fanless Aluminum Fin Heat Dissipation
Type
Ipc
Touch Screen
Touch Screen
Installation
Wall Mounted, Desktop, Embedded
Transport Package
Foam Carton or Custom Wooden Case
Trademark
Senke
Origin
Guangzhou, China
HS Code
8521909090
Production Capacity
10000
Packaging & Delivery
Package Size
33.00cm * 13.00cm * 34.00cm
Package Gross Weight
4.500kg
Product Description
Product Description Full aluminum 1024x768 4:3 15 inch touchscreen embedded all-in-one pc industrial control pc computerProduct Parameters
| Senke Industrial PC | SK-K10DR | SK-K12DR | SK-K15DR | SK-K17DR | SK-K19DR | ||||
| Motherboard | Confirguration | J1900,J6412,J4125,i3 i5 i7 | |||||||
| Interface | WiFi,3/4G module | 802.11b/g/n(optional),Support 3g/4g (optional) | |||||||
| HDMI | 1*HDMI output | ||||||||
| USB | 4*USB 3.0 | ||||||||
| Network | 2*RJ45 with 100 Base-T | ||||||||
| Com | com(RS485)*2 | ||||||||
| Power supply | 1*DC lock phoenix terminal,Support 9-36V | ||||||||
| Audio output | 1*3.5mm audio | ||||||||
| Other | 8*GPIO (optional) | ||||||||
| Display | Screen type | 10.4 LED | 12.1 LED | 15 LED | 17 LED | 19 LED | |||
| Resolution | 1024*768 | 1024*768 | 1024*768 | 1280*1024 | 1280*1024 | ||||
| Size(mm) | 210.4(W)×157.8(H) | 245.7(w)×184.3(H) | 304.1(W)×228.1(H) | 376.3(W)×301.1(H) | 376.3(W)×301.1(H) | ||||
| Contrast ratio | 500:1 | 500:1 | 700:1 | 900:1 | 900:1 | ||||
| Brightness | 200nits | 200nits | 250nits | 250nits | 250cdm2 | ||||
| Screen ratio | 4:3 | 4:3 | 4:3 | 5:04 | 5:4 | ||||
| Structure | Front and back cover | Aluminum | |||||||
| Craft | Glass frame paste, aluminum die casting | ||||||||
| Color | Black,grey | ||||||||
| Heat dissipasion | Fanless aluminum fin heat dissipation | ||||||||
| Panel indicator light | Power state, hard disk state | ||||||||
| Whole size | 281*228*56.8mm | 315*254*56.8mm | 304*2941*55.3mm | 404*341*56.3mm | 445*3756*59.3mm | ||||
| Touch screen | Type | Projected capacitive touch screen | |||||||
| Touch point | 10 point touch | ||||||||
| Physical Resolution | 4096x4096 | ||||||||
| Response time | <5ms | ||||||||
| Accuracy | <2.5mm | ||||||||
| Transparency | ≥90% | ||||||||
| Protection | The surface is coated with 1:1 PVC protective film | ||||||||
| Others | Working environment | 20ºC~ 70ºC;Humidity:10%~ 90% | |||||||
| Storage environment | Temperature:-40ºC~80ºC ; Humidity:10%~90% | ||||||||
| Installation ways | Embedded,VESA100*100mm | ||||||||
| Power consumption | 24W | 25W | 33W | 34W | 37W | ||||
| Accessories | Manual | User Manual,certificate of qualification,warranty card | |||||||
| Bracket | wall mounted bracket,embedded bracket,desktop bracket(optional) | ||||||||
| Adapter | Power adapter | ||||||||
