Woodworking Machinery 3 Axis CNC Router 1325 1224 Atc CNC Machine Delta Inverter Syntec Servo Motor

Product Description

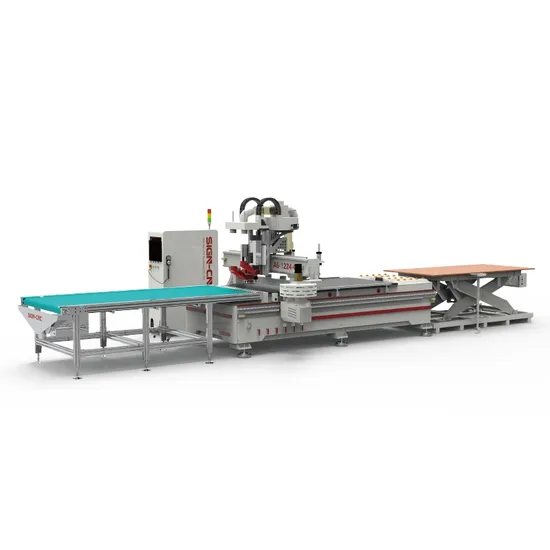

SIGN A6 ATC CNC router with auto loading and off loading system Wood Router Machine for Kitchen Cabinet Mass Production
Product Description

Machine features:
A6 Series ATC multifunctional machine with 8-12 stations disc tools magazine, drilling-filler head 5+4, automatic loading and unloading table, accurate and fast positioning system. The batch processing of woodworking boards has greatly improved work efficiency.

Product Parameters

Model	A6-1325 / 1530 / 2030 /2040-C8
X, Y Working Size	1300*2500mm / 1500*3000mm / 2000*3000mm /2000*4000mm
Z-axis Height	300mm
Table Surface	Vacuum table
X, Y Structure	Helical rack and High precision 25mm square guide rail
Z Structure	High precision 25mm square guide rail and ball screw
Max. Power Consumption	(Without spindle) 2.0KW
Max. Rapid Travel Rate	45m/min
Max. Working Speed	30m/min
Spindle Power	HQD 9KW ATC air-cooled ER32 spindle
Drilling head	HQD 5+ 4 driiling head
Spindle Speed	0-24000RPM
Inverter	Delta 11KW Inverter
Feeding system	Auto loading & off loading system
Drive Motors	SYNTEC 1000W bus control pure servo motors
Reducer	Japanese Shimpo planetary reducer
Tools changer	Disc 8 tools changer (12 16 20 tools available)
Pump	7.5KW air cooling pump
Working Voltage	AC380V/50/60Hz
Command Language	G code
Control System	SYNTEC 60WE control system
Tool sensor	Adjust the distance from the tool to the materials
X,Y,Z Repositioning Accuracy	±0.03mm
X,Y Resolution	<0.03mm
Software	Artcam/Powermill with post processor
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%

Detailed Photos
Samples
Packaging & Shipping

Company Profile
To ensure the overall high quality of machine,all accessories are selected from the original first-line brands,our experienced team strictly follows the drawings for assembly, at least 3 comprehensive tests and support third-party inspection.
Customer feedback

FAQ

Q: What is the warranty:
A:Two years guarantee of the whole machine,one year for electrical components
- For hardware issue, fail parts (excluding the consumables)shall be replaced/repaired free of charge during the warranty period.
-For software issue, provide the operation manual or video for guiding, our technician is able to teach you online to run the machine or eliminate the fault for free.
Q: How do I choose CNC router model?
A: Just let us know your working demands, suitable models will be recommended. We have MTC CNC router, ATC woodworking center, pneumatic tool changer CNC router, multi-head CNC router, foam machining center, 4-Axis/5-Axis ATC CNC router and various types of woodworking machines.
