China New Design Power Vacuum Drum Forklift Lifter

Product Description

Cranage Equipment for Handling Glass, Iron Plate, Stainless Steel Plate and Other Plates
Introduction:

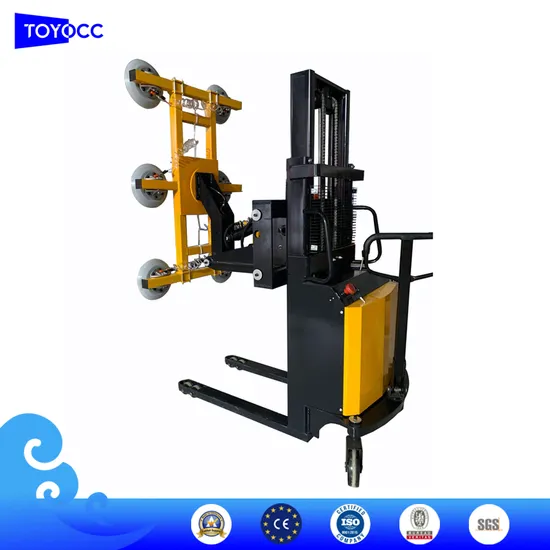

The production and design of the TRYN series suction cup pallet truck combines the advantages of forklifts and suction cup spreaders, which can be used as the functions of ascending, descending, forward tilting, backward tilting, side shifting, rotating, and side turning, and can lift the glass from horizontal to vertical or Any switch from vertical to horizontal, generally used for handling, loading and unloading glass, iron plate, stainless steel plate and other plates. Among them, TRYN-S requires manpower to push and pull to walk, TRYN-F can walk electrically, and RYN-N is a counterweight type without support legs, which is more convenient to operate. Can receive non-standard customization.
Features:
1. Battery powered, no need for external air source or power source, electric inhale and deflate, easy to use
2. It can be equipped with electric rotation, side rotation, side shift and other functions
3. High-power motor, strong power, stable operation
4. Japan's Panasonic digital display pressure sensor, with automatic start-stop function, clearly monitor the safe operation of the equipment
5. Built-in vacuum pressure compensation system to ensure that the entire vacuum system is maintained at a relatively constant safety value during the glass handling process. Even if the power is off unexpectedly, the pressure holding function can extend the emergency processing time and make it safer to use.
6. The position of the suction cup can be adjusted, and each suction cup is equipped with a separate control valve, which can suck different shapes and sizes of glass.
Specification:

Model	TAYN-S	TAYN-F	TAYN-N
Max. Lifting Weight(horizontal)	800	1000	1000
Max Lifting Plate Size	3660*2440	3660*2440	3660*2440
Lifting Height	1600	1600	1600
Safe Loading Weight(Vertical)	400	500	500
Battery	24/120	24/120	24/120(24/210 optional)
Suction Cup Diameter	300	300	300
Suction Cup Qty	38146	38146	38146
Lifting Speed	90/120	90/120	90/120
Falling Speed	125/80	125/80	125/80
Lifting Motor	2.2	2.2	2.2
Front Wheel Size	80*70	80*70	80*70
Balance Wheel Size	150*50	150*80	150*80
Operation	Manual	Electrical	Electrical
Brake Method	Foot brake	AC	Electromagnetic brake
Walking Motor	×	1.2	1.5
Driving Wheel Size	×	Φ300*80
Power	×	AC

Close-up Pics:
Our company is constantly committed to the development of new products, and at the same time pays attention to the after-sales service of the products. We have successively established our own sales points throughout the country and established a complete after-sales service network to fully guarantee the pre-sales, in-sales and after-sales of our customers. The service allows customers to buy with confidence and satisfaction. Our products sell well at home and abroad, and are favored by people from all walks of life.
