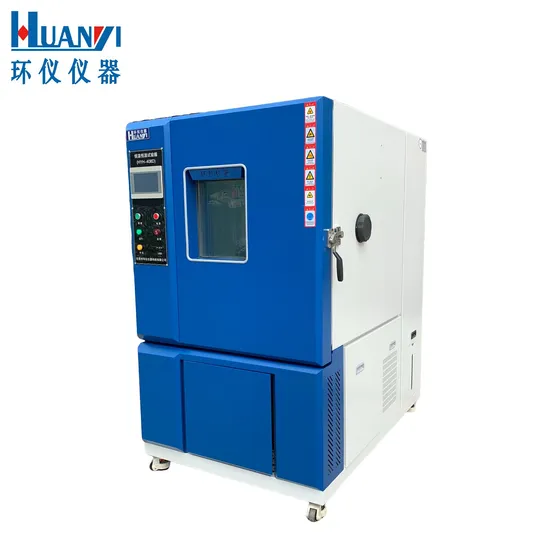

Climatic Environmental Temperature Humidity Test Chamber Constant Temperature and Humidity Test Chamber

Product Description

Product Description
Constant temperature and humidity test chamber, also known as constant temperature and humidity testing machine, programmable heat and humidity alternating test chamber, constant temperature machine, etc.,
It's an equipment used to test the performance of materials in various environments and test various materials for heat resistance, cold resistance, dry resistance, Moisture resistance.
Suitable for quality testing of electronics, electrical appliances, mobile phones, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products.

Product Parameters
Temperature range: -40°C~150°
Humidity range:20%-98%
Temperature and humidity deviation: to ±2.0C, +2%, -3%RH
Temperature fluctuation: <±0.5C
Temperature uniformity: <1.5C no load
Temperature drop time: +20~-40C, within 60 minutes (when no load), the temperature rise and fall can reach more than 0.7 degrees per minute when loaded.
Temperature rise time: -40C~150C, within 40 minutes (when no load), when loaded The temperature rise and fall can reach more than 0.7 degrees per minute

Model	HYH-80	HYH-150	HYH-225	HYH-408	HYH-800	HYH-1000
Inner Size(cm)	40*50 *40	50*60*50	50*75*60	60*85*80	100*100*80	100*100*100
Outer Size(cm)	60*159*137	70*167*150	70*172*160	80*176*171	120*195*175	148*195*175
Weight(kg)	160kg	220kg	300kg	550kg	960kg	1100kg
Temp.control method	PID temperature humdity balance control
Temp.Range	ModelA:0ºC ~150ºC Model B:-20ºC ~150ºC; Model C:-40ºC ~150ºC Model D:-70ºC ~150ºC
Humid.Range	20%~98%RH
Temp.Uniformity	±2ºC
Temp.Fluctuation	±0.5ºC
Humid.Uniformity	±3%R·H
Heating Rate	≥3ºC/min
Cooling Rate	≥1~1.5ºC/min
Cooling Method	Air cooling

Working principle
The constant temperature and humidity test chamber consists of two parts: temperature regulation (heating, cooling) and humidification.
Through the rotating fan installed on the top of the chamber, the air is discharged into the chamber to achieve gas circulation and balance the temperature and humidity in the chamber.
The data collected by the temperature and humidity sensor built in the chamber are transmitted to the temperature and humidity controller (micro Information processor) performs editing and processing,
and issues temperature and humidity adjustment instructions, which are completed through the joint efforts of the air heating unit, condensation tube, and heating and evaporation unit in the water tank.
The temperature adjustment of the constant temperature and humidity chamber is to collect data through the temperature sensor built into the chamber, adjust it through the temperature controller (micro information processor),
and connect the air heating unit to increase the temperature or adjust the refrigeration solenoid valve to reduce the temperature inside the chamber. Achieve the temperature required for control.
The humidity adjustment of the constant temperature and humidity chamber is to collect data through the built-in humidity sensor, adjust it through the humidity controller (micro information processor),
connect the water tank heating element, and evaporate the water in the water tank to increase the humidity in the chamber or adjust the refrigeration.
Solenoid valve is used to achieve dehumidification to achieve the required humidity control.

The constant temperature and humidity chamber is equipped with multiple protection measures; the temperature system is equipped with an over-temperature protector under the condition that the maximum safe allowable temperature can be set,
and the air heating element can automatically cut off power when the rotating fan stops; the humidification system can be adjusted according to the water level of the humidification tank. The power supply will stop when the temperature drops;
the refrigeration system will also stop working as the temperature of the chamber increases (over 40°C) or the humidity increases.

Applicable standards
GB/T 2423.1, IEC60068-2-1, GB/T 2423.2, IEC60068-2-2, GB/T 2423.3, IEC60068-2-78, GB/T 2423.4, IEC60068-2-30,
GJB 150.3A. GJB 150.4A. GJB 150.9A. GB/T10586, GB/T10589, GB/T10592, GB/T11158. GB/T 2423.16.
GJB 150.10A, GB/T10588, GJB 150.7A, etc

Detailed Photos
Company Information

FAQ
(1) Do you accept customized services?Yes, of course, we can not only offer standard machines, but also can customize machines according to your requests. Don't hesitate to tell us your requirements, we will try our best to meet your needs.(2) How about your warranty?Every machine produced in our factory comes with a 14-month warranty after shipment. Generally, we offer 12 months of FREE maintenance, while considering of shipping time, we can extend for 2 months for our customers.If your machine doesn't work, you can email us and we will try to find the problem via email or skype video chat if necessary. After confirming the problem, we can send you new instrument accessories or provide on-site maintenance.(3) What's the delivery term?At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.(4) How to install and use the product? We will email you operating instructions and videos in English, or you can download it directly from our official website.Most of our machines are already a complete part when shipped, which means that they have already been installed, you only need to connect the power cable and can start to use them. If possible, we can also install your machine on site.(5) Are your company a trading one or a factory?We are an industry and trade integrated company, engaged in the research and development and production of test instruments, self-produced and self-marketing, the Foreign trade Department was established in 2007, OEM is also acceptable to us.(6) How to choose the most suitable products?Our professional team will give you the best advice, as long as you tell us what kind of testing you need to do and the required specifications.(7) What is the order process?Inquiry-Quotation-Communication-Order confirmation-Deposit-Production-Testing and debugging-Balance-Packaging-Shipment-Customer reception-After-sales service(8) Can we visit your factory before order?Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we can help to arrange hotel and pick you up at the airport.(9) How about the packing for machine, is it safely protected during transportation?Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
