3000mm*1500mm Fiber Glorystar Packaged by Plywood High Level Laser Cutting

Product Description

Glorystar Laser global best-selling model, European quality, the definition of
high quality.
Hollow+ Plate welded machine bed
Cross-welding of steel plate on both sides of the wall panel + the first hollow thermal deformation prevention structure can effectively prevent the bed from thermal deformation and achieve anti-vibration, torsion, and fatigue resistance of the machine.

Super smoke exhausting system, WORLD TOP CLASS
Advanced dust removal configuration, high dust removal efficiency, safety and environmental protection, greatly improve the working environment of equipment and operators, and effectively prevent important parts from being polluted, dust explosions and occupational diseases

New standard industrial-grade special air conditioner
The new standard industrial-grade special air conditioner efficiently reduces the environmental temperature and humidity of electronic components, ensuring the long-term stability of equipment performance.

Adaptive multi-angle placement
The machine with three-way air duct and left and right hopper can be flexibly assembled according to the site,which is not restricted by the site to avoid dismantling walls and other dangerous operations.

Intelligent comprehensive protection
Automatic grease injection system, avoiding the blockage of the slider, the wear of the transmission part and the decrease of movement accuracy, the anti-collision detection device, realizing door opening protection, visual protection, motor torque detection protection, etc.

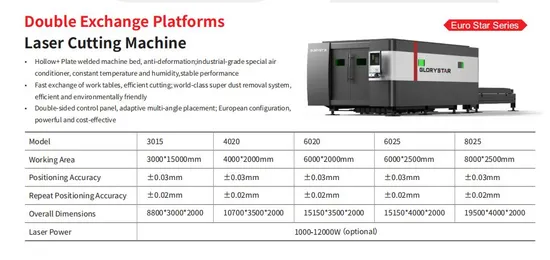

>>> Technical parameters

Model	3015	4020	6020	6025	8025
Working Area	3000*15000mm	4000*2000mm	6000*2000mm	6000*2500mm	8000*2500mm
Laser Power	1000-12000W(optional)
Positioning Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Repeat Positioning Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Overall Dimensions	8800*3000*2000mm	10700*3500*2000mm	15150*3500*2000mm	15150*4000*2000	19500*4000*2000

>>> After-sale Service
Installation and debugging
Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Training
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.
24/7 online service
All our laser equipment is provided with 12 months warranty. Glorystar Laser offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,Glorystar Laser will send engineers to your factory as soon as possible and only charge the cost of parts.
Accessories supply
IPG laser source is 2 years. Other parts is one year except for optical and consumable parts. Prolong serve is always available for option. Free of charge for fixing and changing parts within warranty. Only changing parts , the freight should be charged by customers.
Remote diagnosis
Glorystar Laser can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, saving you a lot of time.
Additionally, Glorystar Laser will establish a special user profile for all customers who have purchased equipment from us to record your usage, maintenance records and other information. This will help us to learn about customer information more quickly and thus provide necessary upgrades according to customer feedback
