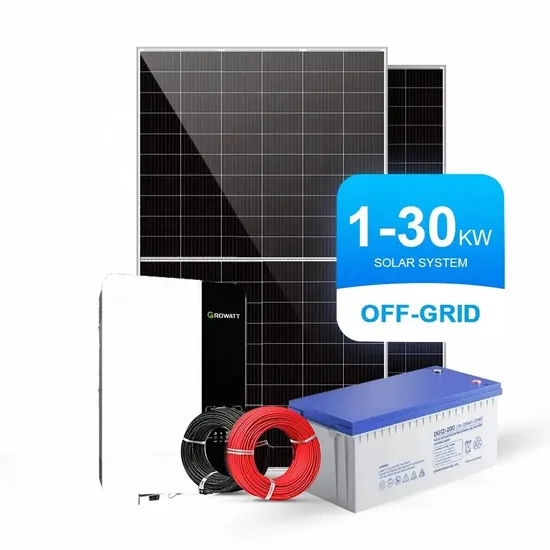

Solar Power Generator Energy System Complete Kit off Grid Solar Energy System 5000W 5kw 10kw Commercial 10 Years Warranty

Product Description

Product Description
Product Parameters

Model	PNG-3KW-OFF	PNG-5KW-OFF	PNG-10KW-OFF
Half Cut Mono 550W Solar Panel	6 Pieces	8 Pieces	16 Pieces
PV Combiner Box	3 Input,1 Output 1 Piece	4 Input,1 Output 1 Piece	4 Input,1 Output 2 Piece
Off-Grid Hybrid Inverter	Growatt 3kw	Growatt 5kw	Growatt 10kw
GEL Battery	12V 200AH/4PCS	12V 200AH/4PCS	12V 200AH/8PCS
DC Cable 4mm2	100 meter	200 meter	400 meter
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	Wire Cable Cutter & Stripper, Disassembly Tool
Model	PNG-15KW-OFF	PNG-20KW-OFF	PNG-30KW-OFF
Half Cut Mono 550W Solar Panel	24 Pieces	32 Pieces	48 Pieces
PV Combiner Box	4 Input,1 Output3 Piece	4 Input,1 Output4 Piece	4 Input,1 Output5 Piece
Off-Grid Hybrid Inverter	Growatt 5kw/3pcs	Growatt 10kw/2pcs	Growatt 10kw/3pcs
GEL Battery	12V 200AH/12PCS	12V 200AH/16PCS	12V 200AH/20PCS
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	Wire Cable Cutter & Stripper, Disassembly Tool

Note:>All of equiipments has warranty. >Reliable after sale sevice during warranty period,replace or repair all parts. >Product dimensions and physical appearance in this data sheet are nominal. >Pinergy Solar reserves the right to make the product changes from time to time.Detailed PhotosMono high efficiency solar panelsPeak Power Watts: 550W (PNG550-144M)
Maximum Power Voltage: 42.3V
Maximum Power Current: 9.69A
Warranty: 10 years
Short Circuit Current: 10.60A
Dimensions:2278×1134×35mm
Weight:29 kg Growatt off grid inverterAll-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave
output.
Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sinewave.
Advanced MPPT technology with an efficiency of 99.9%Monitoring SystemData Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of
your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or
GPRS.App Available for PC, IOS & Andriod Deep Cycle VRLA GEL BatteryDG (Deep Cycle GEL ) series is pure GEL battery with 20 years flfloating design life, it is ideal for standby or frequent cyclic
discharge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte, the DG series offers excellent recovery capability after deep discharge under frequent cyclic discharge use, and can deliver 450 cycles
at 100% DOD.Mounting BracketsMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
Warranty: 10 YearsPV CableDC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 YearsPV Combiner BoxIP Rating: IP65
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2 PV ToolsWire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly ToolPackaging & Shipping
Projects
Company ProfileHefei Pinergy Solar Technology Co.,Ltd is a professional and fast growing company.The business covers the R&D, production andsales of PV modules.Power station and PV system products, power generation and operation and maintenance services,etc.The companyis located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world.Weare world-renowned manufacturer and supplier of solar cells, solar PV modules and solar systems.
Covering an area of 46000 squaremeters,we have more than 200 employees now,which makes annual production capacity of 800MW and 90% were exported all over theworld. The advanced production system and excellent quality control have enabled us to win the trust and support of our customers.We have got certificates of TUV,CE,etc.At present, PINERGY has established a global sales network covering 70 countries/regions.Mainly covering Europe, Asia and South America, customers all over the world. PINERGY has a complete PV productsystem: solar cells, PV modules and PV systems, etc.The goal of PINERGY is to create a new first-class PV product brand, provide clean energy to the world, and assume future responsibility. Excellent quality, PINERGY manufacturing!Certifications
