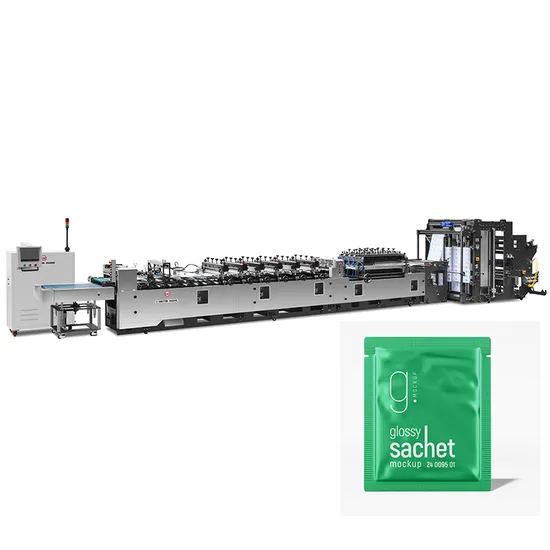

Transparent 3 Seal Side Seal Food Sealer Vacuum Bag Making Machine
| US$37,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CWZD-400A
Product Line
Bag Making Machinery
Lines
1
Voltage
380V
Seals Mode
Trilateral Seals
Speed
High
Continuous-Rolled
No
Sealing & Cutting
Heat-Sealing Cold-Cutting
Layer
Single
Machine Type
Bag Forming Machine
Computerized
Computerized
Type
Plastic Bag Making Machine
Application
3 Side Sealing Bag, Center Sealing Bag
Servo Motor
2PCS, by Yaskawa Japan
PLC Control
Panasonic, Japan
Photocell
Kontec, Taiwan
Unwinder Tension
Automatic, with EPC
Cutting
Cutting Knife (Not Fly Knife)
Color
Can Be Customized
Option 1
Double Unwinders
Option 2
Hole Puncher
Option 3
Double Cutting System
Optional
Die Cutting Machine
Transport Package
Wooden Pallet with Plastic Film Wrapping
Specification
8000x1750x1800mm
Trademark
CHOVYTING
Origin
China
HS Code
8477800000
Production Capacity
300 Sets/Year
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
3000.000kg
Product Description
Product Application Economic type laminated film bag making machine,it is used for various kinds of laminated material,meanwhile it also has side gusset of central sealing bag.can make five side sealing bag.(A series don't have zipper bag device)Main Features 1) All of the parameter display by CRT.
2) It has EPC and double photocells for unwinding.
3) It has centralized oil adding for every lubrication points.
4) Super length has 6 times feeding design.
5) Automatic waste rewinding unit.
Optional
1.Stand-up doypack bag device
2.Punching for handle
3.Round angle puncher
Technical Parameter
| Model | CWZD-400A | CWZD-500A | CWZD-600A |
| Width of unwinding | 800mm | 1000mm | 1200mn |
| Length of unwinding | 70-350mm*N(N≤6) | 70-350mm*N(N≤6) | 70-350mm*N(N≤6) |
| Punch-making width | 70-380mm | 70-480mm | 70-580mm |
| Speed of bag-making | 40-170pcs/min | 40-170pcs//min | 40-150pcs/min |
| Total Power | 24KW | 26KW | 34KW |
| Weight of machine | 3500kg | 3850kg | 4670kg |
| Machine dimension(L*W*H) | 8000*1750*1800mm | 8000*1950*1900mm | 8000*2050*2100mm |
| Air compressor(not included) | 5HP | 5HP | 6.5HP |
