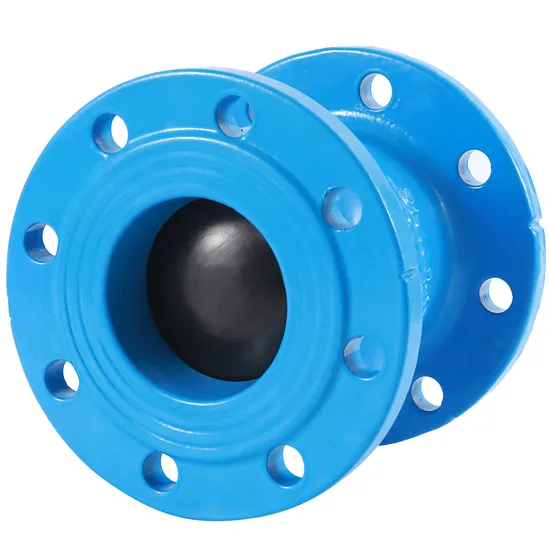

Flanged Silent Check Valve for Water Pump System
| US$109.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
NSCV
Material
Cast Iron
Connection Form
Flange
Structure
Elevated
Pressure
Low Pressure
Function
Nrvr Silence, Sfcv Rubber Lobe, Nrvz Silence
Flow Direction
Unidirection
Standard
DIN
Application
Industrial Usage, Water Industrial Usage
Name
Silent Check Valve
Body
Ductile Iron or Ss
Spring
Ss304
Stem
Ss420
Seat
Ss304
Washer
PTFE
Disc
D.I + EPDM
Size
Dn50-Dn600
Pressure Rate
Pn10/16/25
Coating
Epoxy Coated to 300 Microns
Transport Package
Bubble Bags & Plywood Case
Specification
2"-24"
Trademark
WALTER / No Brand
Origin
Suzhou, Jiangsu
HS Code
8481300000
Production Capacity
1000 Sets Per Month
Product Description
Our Silent Check Valve is desgin with BS EN 1074-3 or BS EN 12334 or BS 5163 Standard. The silent check valve have advantage as below:- Reasonable and Streamlined Design
- Small nosize for direct flow or backflow
- 0.2 Bar Head Loss
- Integral body and flow guide
- Disc with full rubber coated 1- Body/Bonnet: GGG40/50 2- Seat/Stem/Spring: SS304 3- Bushes: C61900 4- DISC: GGG40/50 + EPDM Coating 5- Epoxy Resin coating internal & external, thickness above 300 micron 6- Work pressure: PN10/16/25; Size range: 2" to 24"
7- Connection acc. to EN1074, BS5163, ISO 7259
Silent Check Valve size from DN50 - 600, Material D.I Or S.S .
Walter-FSV Company also provide OEM or ODM for GATE VALVE, BUTTERFLY VALVE, CHECK VALVE, PRESSURE REDUCING VALVE, FLOAT CONTROL VALVE.
