14meters Man Lift Electric Battery Drive Articulating Boom Lift

Product Description

KINGDA HEAVY-DUTY
Professional manufacturer of high-altitude operation equipment Efficient high-altitude operation solution

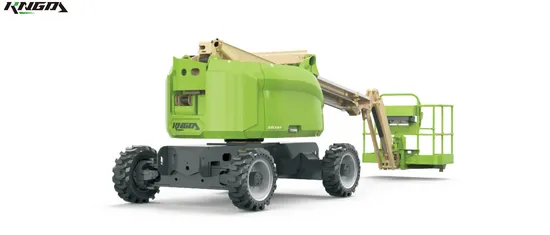

Articulating Boom Lift
Maximum Platform Height:14.3m
Product Feature

With 48V Dc battery pack, full scale handle control, thumb rocker steering,with functions of performing confrmation,tilt alarm,lowering and motionalarm.

Two-speed traveling,four-wheel drive and front axle foating of the whole machine.

Powerful diesel enginewith a maximum gradient of 45%.

With load sensing system and fault diagnosis system.

With emergency pump,emergency lowering and recovery of boom.

Screw-type engine tray,turntable with locking mechanism.

Standard Configuration

Proportional control	Emergency platform lowering	Auto-leveling
Self-locking door	Tubing explosion-proof	Foot switch
Full height drive	Diagnostic system	Load sensing system
Foam tires	Tilt protection	Hand brake release
Two-wheel drive	Action buzzer	Lanyard attachment points
Two-wheel steer	Electric horn	Tie-down and lifting points
Automatic braking	Time count	Emergency stop
Flashing beacons	Charge protection	Maintenance-free batteries
Rental management platform	GPS

Specification Parameters

Model	AB14F
Size	Metric
Maximum Platform height	14.3 m
Maximum horizontal reach	8.7 m
Up and over clearance max.	7.65 m
Machine Length	6.85/5.7 m
Machine Width	2.32m
Machine Height	2.39 m
Platform dimensions (length×width)	1.8×0.76 m
Ground clearance-center	0.3 m
Wheelbase	2.35 m
Tire size	33x12-20
Productivity
Working load	230 kg
Working load - restricted	350kg
Max. platform occupancy	2
Gradeability - stowed	45%
Drive speed - stowed	4.8 km/h
Drive speed - raised	0.8 km/h
Turning radius (inside/outside)	2/4.9 m
Tilt sensor activation (front to back/side to side)	3°/4°
Turntable rotation	360°
Platform rotation	160°
Turntable tailswing	0
Power	36kw
Hydraulic tank capacity/Fuel volume	65L
Weight	7500 kg

Application
It is widely used for aerial installation and maintenance of the working sited such as hotel, grand hall, sport stadium, large factory, workshop, warehouse, granary, bus or railway station, airport, gas station and aerial pipeline.
