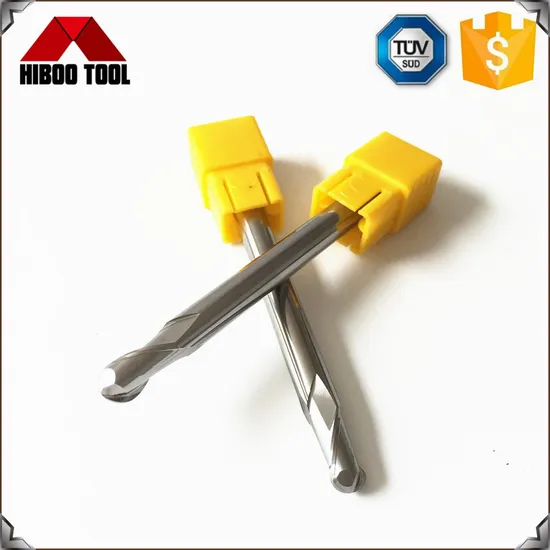

Hot Sale Long Carbide Ball End Mills for CNC Machine Tools
| US$2.20-50.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
carbide ball end mills
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Condition
New
HRC
45 Degree
Helix
30 Degree
Length
50-100mm
OEM
Accept
Size
1-20mm
Flutes
2f
Suitable for
Steel, Stainless Steel, Cast Iron
Samples
Available
Coating
Without
Transport Package
1PC in a Plastic Tube, 10PCS in a Group
Specification
SGS
Trademark
Hiboo
Origin
Changzhou Jiangsu China
HS Code
8207709000
Production Capacity
50000PCS/Month
Product Description
high quality 2Flutes long ball nose end mills1. HRC45 Raw Material , There are other quality for your choosen
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 | Sandvik H10F |
| Grain Size:0.7um Co:10 % Flexural strength: 3320N/mm2 | Grain Size:0.6um Co:10 % Flexural strength: 4000N/mm2 | Grain Size:0.5um Co:12 % Flexural strength: 4300N/mm2 | Grain Size:0.4um Co:12.5 % Flexural strength: 4300N/mm2 |
2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
3. Super TiAlN, reduce the coeffiction of friction, and improve the tools life much.
| AlTiN | TiAIN | TiSiN | Nano | |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
4. Each end mill is inspected by Zoller measuring and inspected machine.
5. The following Specification for your refer, We also provide the OEM or ODM service
| (Order No) | Cutting | Shank | Flute | A.0.l |
| d | D | l | L | |
| R0.5×2×4D× 50L × 2F | 1 | 4 | 2 | 50 |
| R0.75×3×4D× 50L × 2F | 1.5 | 4 | 3 | 50 |
| R1.0×4×4D× 50L × 2F | 2 | 4 | 4 | 50 |
| R1.25×5×4D× 50L × 2F | 2.5 | 4 | 5 | 50 |
| R1.5×6×4D× 50L × 2F | 3 | 4 | 6 | 50 |
| R1.75×7×4D× 50L × 2F | 3.5 | 4 | 7 | 50 |
| R2.0×8×4D× 50L × 2F | 4 | 4 | 8 | 50 |
| R2.5×10×6D× 50L × 2F | 5 | 6 | 10 | 50 |
| R3.0×12×6D× 50L × 2F | 6 | 6 | 12 | 50 |
| R3.5×14×8D× 60L × 2F | 7 | 8 | 14 | 60 |
| R4.0×16×8D× 60L × 2F | 8 | 8 | 16 | 60 |
| R4.5×18×10D× 75L × 2F | 9 | 10 | 18 | 75 |
| R5.0×20×10D× 75L × 2F | 10 | 10 | 20 | 75 |
| R5.5×22×12D× 75L × 2F | 11 | 12 | 22 | 75 |
| R6.0×24×12D× 75L × 2F | 12 | 12 | 24 | 75 |
| R7.0×28×14D× 100L × 2F | 14 | 14 | 28 | 100 |
| R8.0×32×16D× 100L × 2F | 16 | 16 | 32 | 100 |
| R9.0×36×18D× 100L × 2F | 18 | 18 | 36 | 100 |
| R10×40×20D× 100L × 2F | 20 | 20 | 40 | 100 |
6. Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
7.Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity.
8. Payment Term
T/T ,Western Union , MoneyGram,L/C
9.Why Choose Hiboo Tools
Several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest
