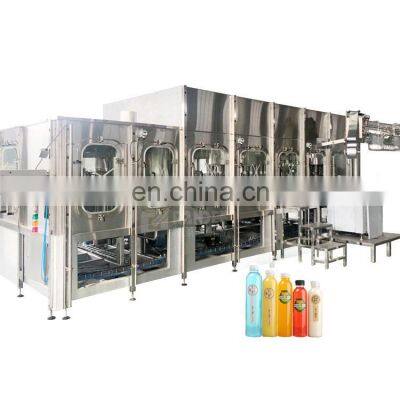

Automatic aseptic cold juice yogurt milk filling sealing machine filler maker machinery bottling plant production equipment

Product Description

Product Description
Automatic aseptic cold juice yogurt milk filling sealing machine filler maker machinery bottling plant production equipment
Product Description
Machine description:
Full filling avoids the bottle distorted after cooling and reduces dissolved oxygen at the maximum duct storage hopper and feed system adopts reasonable product feed design(constant flow,constant pressure,no foaming).product hopper with reasonable structure(exhaust,fully close,temperature can be detected).medium and high speed line adopts product distributor instead of large liquid carousel,which can be cleaned completely by pressure cleaning with CIP.sanitary filling valve system umbrella-flow type structure,high speed.perfect hot filling temperature control duct recycle tank system with automatic product feed startup.perfect CIP system.
Features:
1. The juice filling line processing capacity is varied from 60 tons/day to 1500 tons/day
2. The juice production line Can deal with similar characteristic of fruits
3. Using the high efficient of destoner to improve the mango output percentage effectively
4. Using efficient belt juice extractor to improve the juice efficiency and the output percentage
5. The production process fully automatic PLC control to save labor and Facilitate production management
6. Low-temperature vacuum evaporation, maximize reserve the flavor substances and nutrients also save energy
7. Tubular UHT sterilizer and Aseptic filling machine, produce high-quality aseptic juice products
8. Automatic CIP cleaning, ensure the entire juice filling line equipment of food hygiene and safety requirements
Automatic Aspetic Cold Juice Washing Filling Capping Machine:

Automatic juice filling machine production line packaging specifications						Material: SS304/316
Bottle material	Shape		Filling volume	Filling level(mm)		Neck type
PET/Glass bottle	Square/round/flat bottle		100-2250ml	According request±1mm		As required
Adjustable specifications	Bottle size: bottle diameter≤110mm, bottle height≤340mm
	If using square bottles, then bottle separating system will be added
Filling temperature	5-15℃-30℃-40℃ or 90℃ filling, level control: float ball and pneumatic butterfly valve.
Bottle labeling type		Packing system Min, Spec.				Palletizing system
Manual/ automatic Hot melt roll-fed PVC shrink label Full label/half label		Film shrink packing Robert packing Carton packing		2*3 2*4 3*4 3*5 4*4 4*5 4*6 6-30bags/min		Low position Gantry palletizer Robot palletizer
User Ambient Conditions		Temperature: 2-40℃, Humidity: no dew
Bottle feed-in		Conveyor with screw for glass bottle			Adopt air-conveyor for PET bottle

Grandee machinery can do more for you ?
Detailed Images

Washing Part:The bottle enters into the rinsing part of three-in-one machine through air conveyor. The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again
	Hot Filling Valve 304/316 Stainless steel high precision filling nozzle Filling volume adjustable in fine rank, same liquid level after filling All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean 304/316 stainless steel filling pump Efficient spray nozzle rinse thoroughly and save water for flushing
Capping Part Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
	Air Conveyor.Air conveyor is fixed on the floor, with fan installed on the top. Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power. All are made of stainless steel SUS 304 /316. Rack made by high quality carbon steel welded.
Flat ConveyorEnergy saving. High efficient. Adapt to customer factory layout Special lubrication system, keep products clean, health, safety Extended service life Electric eyes design keep whole line running safety and quicklyOverload protection mechanism to effectively ensure the safety of the machine

Related products
Company information
Workshop detail
Our team
Our exhibition
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
