Brand New Zoomlion 21.5ton Crawler Excavator Ze215e Grabber Excavator

Product Description

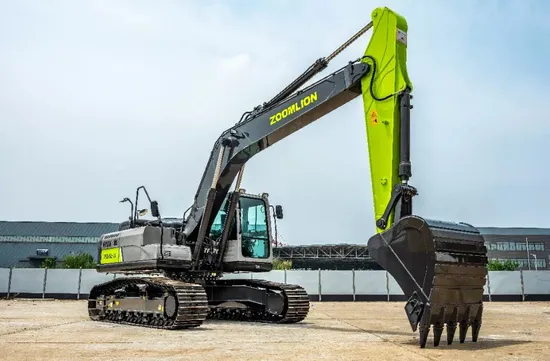

Zoomlion Crawler Excavator ZE215E 21.5Ton Excavator
ZE215E series hydraulic excavator is an E-series excavator newly designed by Zoomlion. It is equipped with imported turbocharged engine to ensure strong power output and less pollution.
The newly designed hydraulic system makes the power of engine and main pump reach the optimal state. The flow of main pump can be automatically adjustable to realize the flow proportion control of actuators and reduce power loss of pump flow. Boasting fuel consumption reduction and high operation efficiency, it also enjoys optimum performance.

Features: 1. Powerful, robust special-purpose CUM-M-INS engine delivers maximum reliability and durability.
2. Integrated cooling module adapts the machine to high temperature working environment (above 48ºC).
3. Full-set of tailored quality hydraulic parts brings more coordinated movements and higher efficient operation, while reducing fuel consumption by 5% and improving efficiency by 8%.
4. The new-type 8-inch monitor providing more displays and more friendly interfaces is provided with four control modes (P, E, B, L).
5. DEUTSCH electrical connectors for the whole machine enjoy better dustproof and waterproof performance.
6. Design service life of structural parts reaches 15,000 hours.
7. Track rollers are in replacement of carrier rollers.
8. Strengthened large-profile boom and stick.
9. Bucket teeth made from high-tensile and wear-resistant steel plate.
10. Rock-type tooth set with chrome-plated pins .

Items		Units	ZE215E	ZE215E ACE
Basic Technical Data	Operating Weight	kg	21500	21680
	Standard Capacity	m³	1.0	1.0
	Slewing Speed	r/min	11.5	11.5
	Traveling Speed(high/low)	km/h	5.5/3.3	5.5/3.3
	Max. Drawbar Pull	kN	192	192
	Digging Force of Bucket	kN	157	157
	Digging Force of Stick	kN	110	110
Engine	Engine Model	/	6BTAA5.9	CC-6BG1TRP
	Rated Power	kW/rpm	112/1950	128.5/2100
	Displacement	L	5.9	6.49
	Emission Standard	/	EU Stage II	EU Stage II
Dimensions	Length	mm	9555	9555
	Width	mm	2800	2800
	Height	mm	3085	3085
	Tail Slewing Radius	mm	2840	2840
	Track Gauge	mm	2200	2200
	Length of Track On Ground	mm	3380	3380
Operating Range	Max. Digging Radius	mm	9830	9830
	Max. Digging Reach	mm	9650	9650
	Max. Digging Depth	mm	6610	6610
	Max. Digging Height	mm	9615	9615
	Max. Dumping Height	mm	6785	6785
