US$3,500.00-18,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Name
QC12K CNC Swing Type Shearing Machine
Color
Optional Hydraulic Shearing Machine
Hydraulic System
Bosch Rexroth Germany
Sealing Rings
Volqua Japan
Electric Parts
Siemens & Schneider
Shearing Plate Material Available
20-600mm
Stroke Number
Mild Steel, Stainless Steel, Aluminum Steel
Production Capacity
30set/Month
Product Description

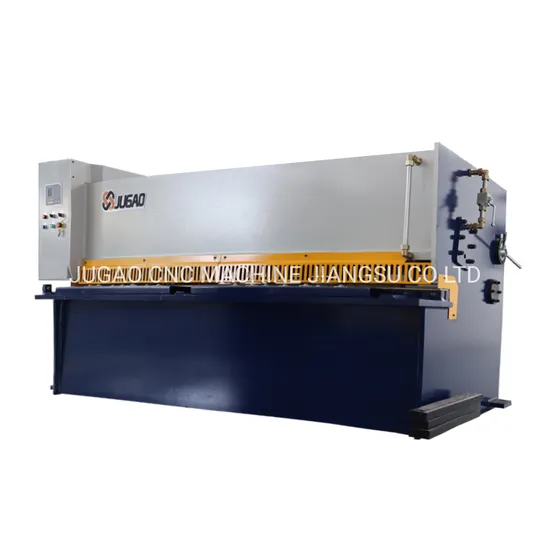

QC12Y Series Hydraulic Swing Beam Shearing Machine Pendulous Shearing Machine 1. Hydraulic transmission, pendulum-type tool holder. The overall welding of the frame is hard and durable, and the use of a nitrogen cylinder returns smoothly and rapidly.
2. It has the function of stepless adjustment stroke. The amount of upper and lower blade edge clearance is adjusted by the handle, and the gap of the blade is even and rapid.
3. NC control system and position encoder, inverter, closed-loop control system, speed, high positioning accuracy, good stability, can accurately ensure the accuracy of the back gauge displacement size, while the CNC system has precision compensation and automatic detection A variety of additional features.
Technical parameter
model | Shear plate thickness | Shearable plate width | Number of trips | Back gauge range | Shear angle | main motor power |
mm | mm | min -1 | mm | ° | kw |
6×2500 | 6 | 2500 | 20-25 | 600 | 0.5-1.5 | 7.5 |
6×3200 | 6 | 3200 | 16-25 | 600 | 0.5-1.5 | 7.5 |
6×4000 | 6 | 4000 | 14-25 | 600 | 0.5-1.5 | 7.5 |
6×5000 | 6 | 5000 | 10-15 | 800 | 0.5-1.5 | 7.5 |
6×6000 | 6 | 6000 | 10-15 | 800 | 0.5-1.5 | 11 |
8×2500 | 8 | 2500 | 18-25 | 600 | 0.5-1.5 | 11 |
8×3200 | 8 | 3200 | 16-25 | 600 | 0.5-1.5 | 11 |
8×4000 | 8 | 4000 | 12-25 | 600 | 0.5-1.5 | 11 |
12×2500 | 12 | 2500 | 12-20 | 600 | 0.5-2 | 15 |
12×3200 | 12 | 3200 | 12-20 | 600 | 0.5-2 | 15 |
12×4000 | 12 | 4000 | 12-20 | 600 | 0.5-2 | 15 |
16×2500 | 16 | 2500 | 10-15 | 800 | 0.5-2.5 | 18.5 |
16×3200 | 16 | 3200 | 10-15 | 800 | 0.5-2.5 | 18.5 |
16×4000 | 16 | 4000 | 8-15 | 800 | 0.5-2.5 | 18.5 |
20×2500 | 20 | 2500 | 8-12 | 800 | 0.5-2.5 | 30 |
20×4000 | 20 | 4000 | 8-12 | 800 | 0.5-2.5 | 30 |
25×2500 | 25 | 2500 | 6-10 | 800 | 0.5-3.5 | 37 |
25×3200 | 25 | 3200 | 6-10 | 800 | 0.5-3.5 | 37 |
25×4000 | 25 | 4000 | 6-10 | 1000 | 0.5-3.5 | 37 |
32×2500 | 32 | 2500 | 6-8 | 1000 | 0.5-3.5 | 45 |
32×3200 | 32 | 3200 | 6-8 | 1000 | 0.5-3.5 | 45 |
