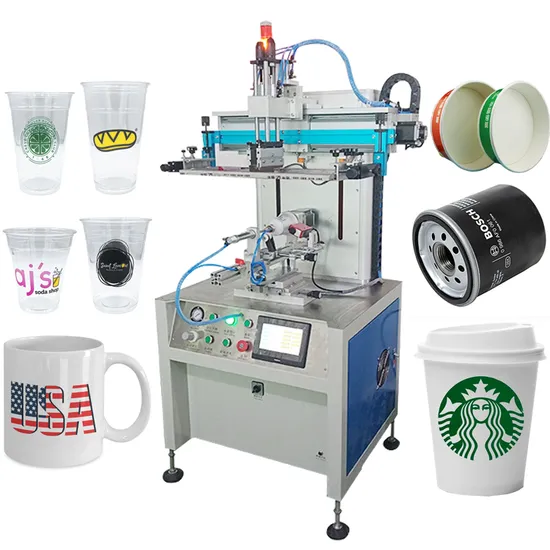

Screen Printer for Plastic Cup Pet Cup Logo Screen Printing Machine
| US$4,500.00-6,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HX-3AS
Type
Vertical Screen Printing Machine
Style
Screen-process Printing Press
Structure
Rotary Printing Press
Color & Page
Multi-Colour Printing Press
Application
Packaging Printing
Control System
PLC + HMI
Print Diameter
125mm
Machine Speed
800 Cycles/Hr
Vertical Driven
Cylinder
Transverse Driven
Servo Motor
360 Degrees Driven
Servo Motor
Machine Dimension
960*750*1500mm
Machine Weight
230kg
Transport Package
Plywood
Specification
390*300mm
Trademark
HX
Origin
China
HS Code
8443192290
Production Capacity
500 Sets / Year
Packaging & Delivery
Package Size
110.00cm * 95.00cm * 165.00cm
Package Gross Weight
280.000kg
Product Description
Screen Printer for Plastic Cup PET Cup Logo Screen Printing MachineTechnical Parameter:
| Name | Screen printing machine withi optical sensor registration |
| Controlling system | PLC + HMI |
| Transverse stroke | Electronic, servo motor |
| Vertical stroke | Pneumatic, cylinder |
| Product holder driven | Electronic, servo motor |
| Transverse stroke | 400mm |
| Vertical stroke | 100mm |
| Max print size | 390*300mm |
| Printable diameter | 5 ~ 150mm |
| Full circle print diameter | 125mm |
| Machine speed | 800 cycles / hr |
| Machine Power | 220V 1Phase 50Hz |
| Air supply | 5 ~ 7 Bar |
| With optical sensor, special designed for printing multi color on cylindrical containers without registration point, | |
| Such as disposable cups, glass bottles, glass cups, soft tubes, thermos cups etc | |
