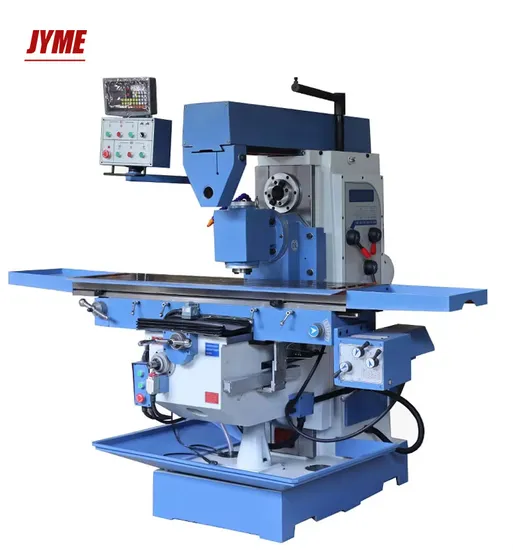

X6036 High-Performance Milling Machine Automatic Lift
| US$5,000.00-5,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6036
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1500X360mm
Table Travel
1000/320/450mm
T Slot(Number-Width-Pitch)
3/18/80mm
Spindle Taper
ISO50 7:24 ISO40 7:24
Spindle Speed Range
60-1800rpm (12)
Main Motor Power
4kw
Weight
2400kg
Overall Dimension
2220X1790X1860mm
Transport Package
Export Wooden CTN
Trademark
JYME
Origin
China
Production Capacity
1000
Product Description
The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.Product main technical parameters:
| Specifications | Units | X6036 | X5032K |
| Table size | mm | 1500x360 | 1500×320 |
| Table travel | mm | 1000/320/450 | 800/300/400 |
| T slot(number-width-pitch) | mm | 3/18/80 | 3-16-70 |
| Spindle taper | | ISO50 7:24 ISO40 7:24 | ISO50 7:24 |
| Spindle speed range | rpm | 60-1800(12) | 40-1300(12steps) |
| Distance between spindle axis and table surface | mm | 0-450 | 50-450 |
| Main motor power | kw | 4 | 320 |
| Weight | kg | 2400 | 4 |
| Overall dimension | mm | 2220×1790×1860 | 2400 |
Details:
Machine in factory:
