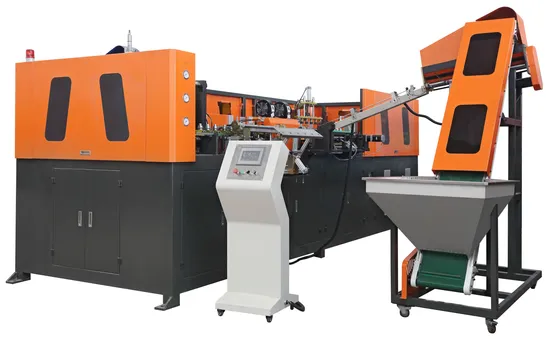

6 Cavity Automatic Pet Bottle Blow Molding Machine
| US$80,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BM-A6
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE
After-sales Service
2 Year
Transport Package
Wooden Case
Specification
CE
Trademark
Mars
Origin
Jiangsu, China (Mainland)
HS Code
8477309
Production Capacity
100PCS / Year
Product Description
6 Cavity Automatic PET Bottle blow molding machine6 Cavity Automatic Pet Stretch Blow Moulding Machine is used to Blow PET bottles from PET preform, It is complete Automatic Machine which can be attached on line with Filling Machine which reduces manpower and increase efficiency. We have 2 cavity, 4 Cavity, 6 Cavity, 12 Cavity & 16 Cavity Linear Pet blow machines Which canreach 20, 000 Bottle per hour.
Our machine can be used for Mineral Water Bottles, Hot Filled Juice Bottles, Cold Fill Carbonated drinks & other Pet Bottle usage & Applications.
Features:
Quick mold change-over using mold cage system.
Power equipped machine using air recovery system
Precise Heating System using Heating Power adjustable in decimals.
High Output per Cavity compare to the other Machines.
Specially designed feeding system carries the preform automatically.
Easy installation and starting.
Advanced PLC control system with a use-friendly Control Panel.
Smooth and steady operation.
Long service life and reliable performance.
Independent & simple linear running system.
Powerful & efficient heating unit with precision control and convenient adjusting device.
Equipped with specially designed air storage unit.
Cooling system to get perfect cooling result.
Technique Parameter of blow molding machine:
| Main part: | ||
| Pneumatic part | Valve | SMC |
| Cylinder | ||
| Electric part | PLC | SIEMENS |
| Operating System | SIEMENS | |
| Relay | OMRON | |
| Servo motor National | SIEMENS | |
| Note | All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product. | |
| Model | BM-A6 | |
| Productivity | Depend on bottle design | 5000-7000PCS/H |
| Product type | Body diameter | ≤90mm |
| Height | ≤325mm | |
| Neck diameter | 28mm-30mm | |
| Mold | Cavity | 6 cavities |
| Mold thick | 240mm | |
| Main machine power | Electrical source power | 380v 3Phase /220v 3Phase 50/60HZ |
| Rated Power | 53kw | |
| Really use power | 24kw | |
| Air source | LP air compressor | 1.6m3/min 1.0MPa |
| HP air compressor | 3.2m3/min 3.0MPa x 2 | |
| Air dryer | 6.0m3/min 3.0MPa | |
| Cooling water | Cooling water | 60L/min |
| Machine Size | L*W*H | 5000*2800*2200mm |
| Weight | 4800kg | |
| Auxiliary equipment preform unscrambler | L*W*H | 2300*1500*2480mm |
| Weight | 350kg | |
| Resin available | PET | |
