High Precision Hydraulic My250 China Surface Grinder Machine Tools Price

Product Description

Product Description

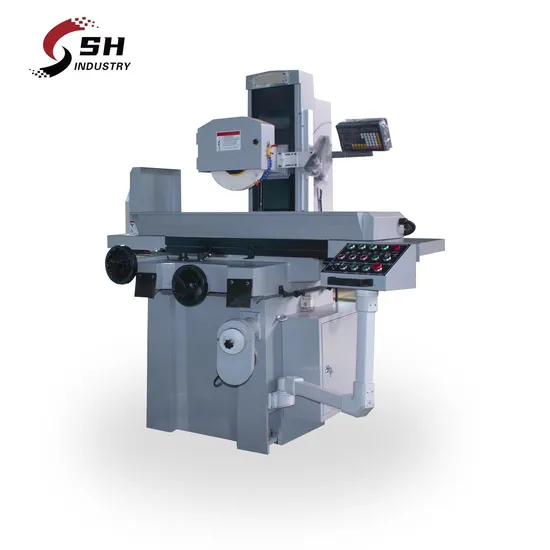

High Precision Hydraulic My250 China Surface Grinder Machine Tools Price
We are the most professional in making surface gringding machine
Product Parameters

Main technical specifications	Specifications				Units	MY250
	workbench	Worktable size (L * W)			mm	500×250
		Max. Travel of table			mm	540×260
		Table T slot (slot number x slot width)			mm	1×14
	Grinding head	The grinding wheel size (o. d * w * i. d.)			mm	ø200×18×ø31.75
		Distance spindle center line to working table			mm	490
		Grinding wheel speed		50HZ	r/min	2850
				60HZ	r/min	3360
	The amount of feed	Table longitudinal (left and right) speed			m/min	3-20
		Table transverse (front and rear) feed handwheel feed		Continuous (stepless)	mm/min	150
				Intermittent (stepless)	mm/times	0-5
				Handwheel per turn	mm	5
				Handwheel per lattice	mm	0.02
		The vertical (up and down) feed handwheel feed		Handwheel per turn	mm	2
				Handwheel per lattice	mm	0.01
	Hydraulic system	Hydraulic motor			kw	1.5
		working pressure			Mpa	2.5
		Fuel tank capacity			L	60
		Maximum flow rate			L/min	18
	Motor power	Spindle motor			kw	1.5
		Cooling motor			W	40
	working accuracy	The process surface of the base level of the parallel degree			mm	00:00.0
		Surface roughness			μm	Ra0.32
	Machine weight		Net weight		kg	950
			Gross weight		kg	1150
	External size (L * w * h)				mm	1750×1350×1960
	Packing size (L * w * h)				mm	1630x1290x1940

The main performance characteristics:1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.5. No vibration, low noise motor spindle.6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.Application:Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Realistic photos
Detailed Photos

Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
