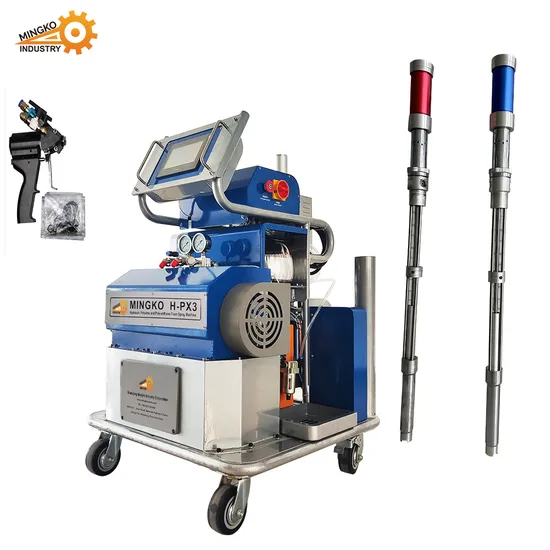

Mingko H-Px3 Hydraulic High Pressure Closed /Open Cell PU Polyurethane Polyurea Spray Foam Coating Insulation Injection Rig Equipment Machine for Sale

Product Description

Mingko H-Px3 Hydraulic Closed /Open cell PU Polyurethane Spray Foam coating insulation Injection Rig Equipment Machine for sale
Equipment applications:
This equipment can be used for various construction environment with spraying two-component materials spray(optional) like polyurethane foaming materials, widely used in embankment waterproof, pipeline corrosion, auxiliary cofferdam,tanks, pipe coating, cement layer protection, wastewater disposal,roofing, basement waterproofing, industrial maintenance, wear-resistant linings, cold storage insulation, wall insulation and so on.
Features:
1. Stable cylinder supercharged unit, easily providing adequate working pressure;
2. Small volume, light weight, low failure rate, simple operation, easy mobility;
3. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;
4. Minimizing spraying congestion with 4-layers-feedstock device;
5. Multi-leakage protection system to protect the safety of the operator;
6. Equipped with emergency switch system, help operator deal with emergencies rapidly;
7. Digital counting system can understand original consumption timely;
8. Reliable & powerful 380V or 220v heating system enables rapid warming of raw materials to the best state, making sure it works great in cold condition;
9. Humanized design with equipment operation panel, super easy to get the hang of it;
10. Feed pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.
11. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;
If you want to know more about this machine please contact Tracy

Power source	380v 3 Phase or single phase 220V 50Hz/60HZ	Heating power	26KW Driven mode
Driven mode	Hydraulic	Air source	0.8 MPa ≥0.5m³/min
Raw output	2~14 kg/min	Maximum output pressure	36Mpa
AB material output ratio	1:1	Machine weight	300kg

Set Temperature
Choose Spray material Type :
1 Close cell and open cell 1:1 polyurethanenterior and exterior walls and roof insulation
2: Polyurea 1:1 for waterproof for anti-corrsion and bed liner Pick Up Truck cars
3:1 Powerful Transfer Pumps

Polyurea spray gun and foam spray gun with different nozzles
Low voltage transformer to Human Body safety voltage Big fan for cooling system on Hydraulic Oil

Extra pump for more stable working purpose
