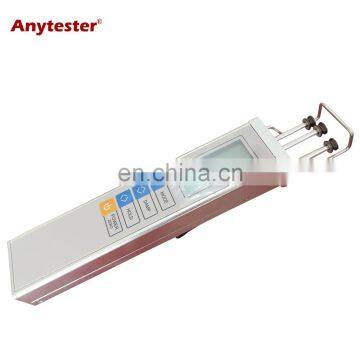

Digital Tension Meter For Yarn

Product Description

Product Description
ApplicationDTM Series Digital Tension Meter is used determine the tension of moving or static yarn, fine wire, plastic and thread. It’s widely used throughout the world in many different industries, such as man-made fiber industries, cotton textile industries, knitting industries, optical fiber industries, the wire industries, etc. Features 1. Aluminum profile with Aluminum outer casing.2. Three long and closely-spaced slender shafts with precision guide rollers, and the end of the middle slender shaft combine with the latest microprocessor technology.3. Employ a strain-gauge system for accurately perceive and record the tension change.4. Adjustable damping (10 steps) for easier readings when tension fluctuates, 5. The large LCD display (4-digit) shows dynamic tension values calculated during the update, and can reach to accuracy of 0.1cN.6. Automatically power off after about 3 minutes of non-operationSpecification ModelDTM50,100,200,300,500Digital Tension MeterDTM500,1000,2000Digital Tension MeterTension range0-50,100,200,300,500cN0-500,1000,2000cNAccuracy0.1cN1cNGuide rollerCeramic poleV-grooveStandard widthDilatedSolidified aluminumStainless steelMax wire speed6000m/min900m/min450m/minApplicationFine wire, yarn, plastic wireWire, plastic threadOver rangeApprox. 10% full scale, without accuracy guaranteeOverload protection150% of tension rangeSampling rateApprox.5 kHz(internal only) Display update rateApprox.4 times/secMeasuring deflection0.5mm max.Temperature range10~45℃Air humidity85% RH, maxInstrument dimensions220×52×46mm(L×W×H)Box dimensions350×270×80mm(L×W×H)Weight, net (gross)Approx. 500g (1020g)Power supplyAlkaline Battery(2×AA, about 50h of continuous use)
