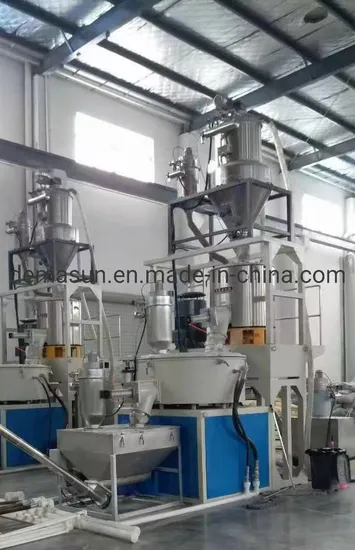

PVC Powder Resin Mixer Machine Turbo Mixer Unit High Speed Mixing Machinery Plastic Extrusion Auxiliary Machine Mixing System

Product Description

Keep on going for new technology on plastic extrusion is our target. Welcome to contact us!
A. Vertical Mixer Unit
It is used in batching, mixing, drying, coloring and other industrial process. It is the most ideal equipment for producing plastic profile, plastic pipes.
Hot mixing has the self-friction, electric heating function. Pot cover adopts two-layer sealing design. Cold mixing also adopts arch pot cover, which can avoid deforming. It has features of fine construction and good performance. Mixing paddle has passed through the static and dynamic balance test.

Model	Total capacity (L)---heat/cool	Effective capacity (L)---heat/cool	Van rotating speed(r/min)	Motor&Heating power(KW)	Gass consumption m3(min)	Heating method	Discharging method	Mixing time m/p. pot
								Heat	Cool
SRL-Z300/600	300/600	200/360	950/130	55/11	3.8t/h	Electric heating/ Self-friction	Manual/Pneumatic	8~10min/pot	6~8min/pot
SRL-Z500/1000A	500/1000	375/650	860/60	75/15	5.8t/h		Pneumatic	8~10min/pot	6~8min/pot

B. Horizontal Mixer Unit
It is used in batching, mixing, drying, coloring and other industrial process. It is the most ideal equipment for producing plastic profile, plastic pipes.
Pot cover adopts two-layer sealing design. The opening of hot mixing pot cover adopts pneumatic, and the one of cold mixing pot cover is pneumatic or manual type. It has features of fine construction and good performance. Electric control adopts imported famous brand meters and control elements to realize automatic control. Equipped with pulse dust-cleaning recovery device. Mixing paddle has passed through the static and dynamic balance test. Simple and easy feeding system is an optional choice for customer.

Model	Total capacity (L)---heat/cool	Effective capacity (L)---heat/cool	Main shaft speed (rpm)	Motor power (KW)	Heating cooling method	Discharging method	Water consumption (T/h)
SRL-W 800/2000	800/2000	520/1200	750/80	110/22	Self-friction/water cooling	Pneumatic	8
SRL-W 800/2500	800/2500	520/1500	750/80	110/30		Pneumatic	9
SRL-W 1000/3000	1000/3000	1650/1950	600/65	160/37		Pneumatic	11
