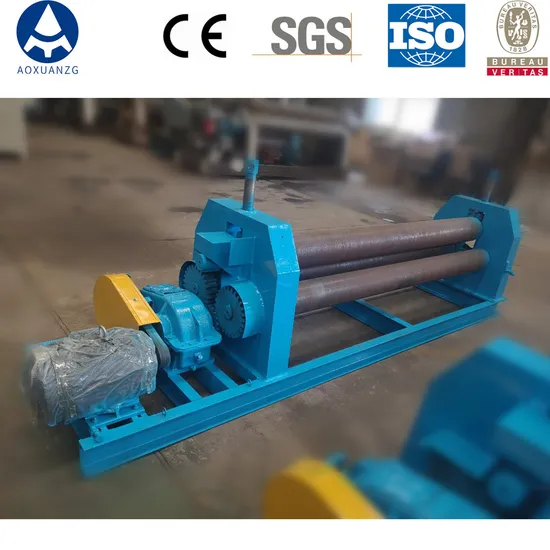

Electric 3 Roller Plate Rolling Bending Machine Manufacturer Best Price

Product Description

Electric 3 Roller Plate Rolling Bending Machine Manufacturer Best Price Summarize:
This belongs to three roller plate rolling machine,up roller is fixed and it is the main drive,hydraulic motor driven by variable speed
drive gear up and down roller belt drive, to provide torque for the roll sheet; under the roller moves vertically through the hydraulic
pressure acting on the piston of hydraulic cylinder obtained in order to clamp plate for hydraulic transmission; the down roll of the
sides with side roller and cylinder driven by oil.The machine advantage of end plate bending(pre-bending) and rolling can be
conducted on the same machine
Structure and main parts:
This equipment composed of work frame , upper roll device , main drive device, down roll device, side roll device, overturn device,
hydraulic system(parts) , electricity system(parts), and lubricate device .
Work frame:
Body from the base, a fixed side frame and the tip side of the rack, and each part is steel welded structure. Were fixed with bolts
on both sides of the rack in the base and sides of the rack will be used to connect beams connected to rigidity good. Both sides
of the rack up roller and side rollers with movement of rail, fixed on the side of the rack with roller bearing for half of the closed
frame structure, has overturned side rack shelf support devices. Coil force in the process of both sides of the rack by the bear
from the base not only supports the weight of the machine to ensure the accuracy of the role of equipment, but also enables
a torque between the drive and chassis balance, and will join into one machine. In the now traditional large-scale four-roller
bending machine body and the main gear is separate from the base installation.
Deatailed information:
1. Main power:Siemens Electrical made in Germany
2. Main electronic elements: Schneider made in France;
3. Axletree:Double-row self-aligning bearingfrom Germany
4. Main motor: Siemens Electrical made in Germany
5. Programmable logic controller PLC:OMRON products from Japan
6. Hydraulic system: Bosch - Rexroth made inGermany
7. Gear pump: made in China TaiWan ;
8. Work Roller:Material of work roller with 42CrMo Alloy steel.
9. Digital display system:Touch Screen for Delta
10 Transducer:OMRON,Made in Japan
11. Automatic lubrication system:Sino-Japanese joint,which has block alarm
W12 Four-roller Rolling machine, plate rolling machine, hydraulic bending machine, 4-roller rolling machine,
W11 Three-roller rolling machine,plate,rolling machine
Technical Parameters:

TECHNICAL PARAMETERS for 3-roller plate rolling machine 3 roller roll forming machine, mechanical roll bending machine,rolling machin
Model type	Pre-	Working	Max.	Upper	Under	Side	Motor	Length	Height	Width	Weight
	bending	length	thickness	(mm)	(mm)	(mm)	power	(mm)	(mm)	(mm)	(kg)
	(mm)	(mm)	(mm)				(KW)
W11-6x2500	6	2500	4	190	170	150	3	4020	1250	1380	3600
W11-8x2500	8	2500	6	210	190	170	7.5	4660	1320	1370	4600
W11-10x2500	10	2500	8	230	210	190	7.5	4660	1320	1370	5560
W11-13x2500	13	2500	10	270	250	210	11	5009	1430	1520	7200
W11-16x2500	16	2500	13	300	270	210	11	4920	1460	1730	8110
W11-20x2500	20	2500	16	330	300	240	11	4970	1610	1840	10570
W11-25x2500	25	2500	20	360	330	250	15	5040	1680	1900	11800
W11-30x2500	30	2500	25	390	360	300	18.5	5020	1980	2100	15800
W11-35x2500	35	2500	30	430	390	330	22	5280	2180	2200	20700
W11-45x2500	45	2500	35	460	420	360	30	5645	2585	2300	30000
W11-50x2500	50	2500	40	510	460	390	45	4800	2500	2450	45000
W11-55x2500	55	2500	45	540	510	440	55	6000	3050	3000	49000

Certifications:
Packing Detail:
Each Mechanical rolling machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment
Our Service
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
Our Company:
Our workshop:
Customer & EXPO:
FAQ:
1. Are you the manufacture?Can we visit your factory?
We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.
2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.
3. What are the advantages of your machines?And how can i believe the quality of your product?
The main configuration is to import quality products, and Professional product quality inspection teamensure machine in top-quality,
precision and life. For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system
and so on. Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.
4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.
5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical problem
or other after-sales problem, meanwhile ,you can get big discount and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, ****** Secure Payment ect. Buyer pays 30% by T/T to start this order, rest 70%paid before shipment.
7.Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.
Our technical staff can go abroad to provide you with technical guidance.
8. How long is your warranty?
13 months free warranty, life-long maintenance.
9.Do you accept customer Logo and customized?
we accept kinds of customized ,including logo and machine.
