Linear Motor Low Speed CNC Brass Wire Cut EDM Machine

Product Description

Product Description

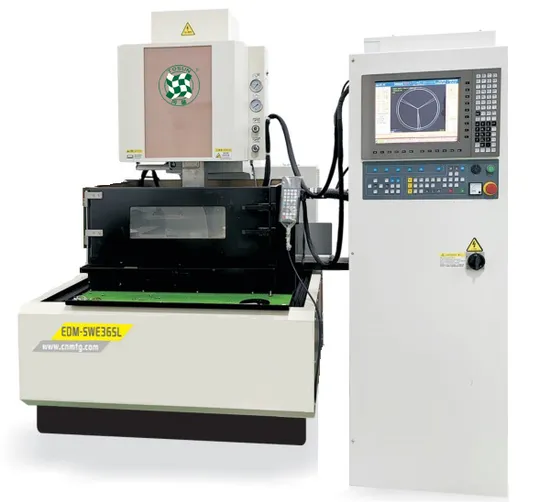

1. SWE36SL low speed brass wire cut machine adopts Japanese STK technology and C-type high rigidity design, combined with high-strength main structure castings, to achieve high rigidity and thermal balance characteristics, ensuring the machine's ultra-high processing stability and accuracy.
2. Use the linear motor made of Japanese technology, which features non-contact, frictionless, no kinetic energy conversion and brings outstanding performances that are unparalleled in general screw drive, such as high-speed movement, fast response, vibration free, high positioning accuracy, and no back gap thus no need of replacing screws, realizing the unimaginable high-precision cutting and long-term low-cost processing.
3. Automatic threading function. Paired with automatic threading, it can effectively reduce working time and can be threaded directly at the disconnection point without the need for water or air assistance. Even if the cutting thickness is high (100mm), there can be a success rate of over 90% in automatic threading (the success rate decreases proportionally with the increase of thickness). The starting threading hole needs to be 0.05mm larger than the wire diameter.
4. This machine plays an important role in the field of high-precision mould manufacture, shaped tool machining, hard-machined material and the machine of precise complex part.
Product Parameters

Equipment Specification

No.	Description	Unit	Specification
1	X, Y and Z axis travel	mm	360*250*220
2	U V axis travel (U V)	mm	60X60
3	Max. Workpiece Dimensions (L×W×H)	mm	680*600*200
4	Max. Workpiece Weight	kg	300
5	Max. Cutting Speed	mm²/min	200
6	Cutting accuracy	mm	±0.003
7	Surface roughness	μm	Ra0.4-0.45
8	X Y rapid feed rate	mm/min	300
9	Motor system	axis	Linear motor for X, Y axis AC Servo motor for U, V, Z axis
10	Max. Power	kw	11
11	Wire Electrode Diameter	mm	Φ0.15~Φ0.3 (Φ0.25)
12	Maximum wire feed speed	mm/sec	300
13	Line tension	gf	300~2500
14	Taper/Workpiece Height	mm/sec	±14.5°/80mm (wide-angled nozzle, DA+DB=15mm)
15	Filtration capacity	L	650
16	Filtering method		Paper
17	Ion resin filter	L	12
18	Water quality control		Auto
19	Liquid temperature control		Auto
20	Loop mode		Power MOSFET Transistor
21	Maximum output current (A)		25
22	Dimensions (L×W×H)	mm	2000*2255*2200
23	Net weight (include power box and water system)	kg	2600

Packaging & Shipping
Packing List

No.	Description	Qty	Unit
1	Machine body	1	set
2	Paper filter	2	pc
3	Diamond guides (0.26mm)	2	pc
4	Water cover	2	pc
5	Conductive block	2	pc
6	Diamond guide remove jig	1	set
7	Brass wire	Ø0.25mm	5kg
8	Tools	4	pc
9	Spark vertical correction block	1	pc
10	Resin	3L	1
11	Voltage regulator	1	pc
12	Grating ruler	1	pc
13	Water chiller	1	set
