High Torque and High Precision Gearboxes Evb Series Planetary Gearboxes

Product Description

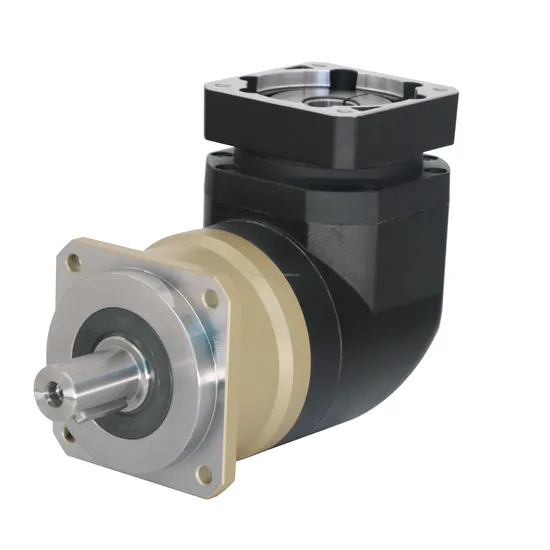

Product Description Right Angle Planetary Gearbox High Torque High Precision Speed Reducer EVB Series EVB planetary gearbox is a type of high quality and low backlash right angle gearbox, which makes the gearbox easily mounted to the motion system and offer a solution to solve the space problem. The inner construction is designed with spiral bevel gears which features of better meshing performance, smooth transmission, low noise and high rigidity.
EVB right angle gearbox is not only the ideal option for the motion control system with limited space, but also the best choice for the transmission occasion that needs to change the motion direction. So it can help users to save the running cost and improve the transmission efficiency.

Ratio			3~100
Motor			Servo motor, stepper motor, BLDC motor
Lead time			15-20 days
Color			Golden and black

- Precision Grade: P1 ( ≤ 5 arcmin, ≤ 8 arcmin )
p2 ( ≤ 8 arcmin, ≤ 10 arcmin ) - Service Life: 21000h - Operating Temperature: -15 ~ +90 - Protection Grade: IP65 - Mounting Position: Any Direction - Efficiency: ≥ 90% ~ ≥ 93% Detailed Images * Space-saving
90 degree right angle construction achieves the space-saving. * Maintenance-free No need to replace the grease for the service life of the reducer. More convenient to install. * High rigidity and torque The rigidity and torque are heavily enhanced by using integral roller bearing. * No grease leakage High viscosity and non-separated grease are used to avoid the leakage. * Methods of connector and flange Can be mounted to any motors all over the world. Related Products Company Introduction 3F Famed company developed from a factory which professionally manufactures the gears. All staffs of factory and R & D team have more than 20 years' gear manufacturing and designing experience. The factory cooperated with planetary gearbox technology team in the early period, and then established business department of the planetary gearbox, and developed the design and manufacturing process of product line of planetary gearbox series. Products can be compatible with servo motors and stepper motors produced by any servo factory. High precision planetary reducers features of reducing rotating speed, increasing torque greatly, increasing inertia of the motor rotor, improving rigidity, shortening the locating time of start and stop, miniaturizing the motor power and improving the stability of the inertia load and reducing the vibration at the same time.
Our Services & Strength 1. Economical alternatives of German Alpha, Neugart, Japan Shimpo, Harmonic Drive, Taiwan Apex, etc. 2. Delivery time could be negotiated if you are urgent.
3. OEM service is acceptable.
4. Comprehensive after-sales service and free technical support.
5. High quality at reasonable prices.
