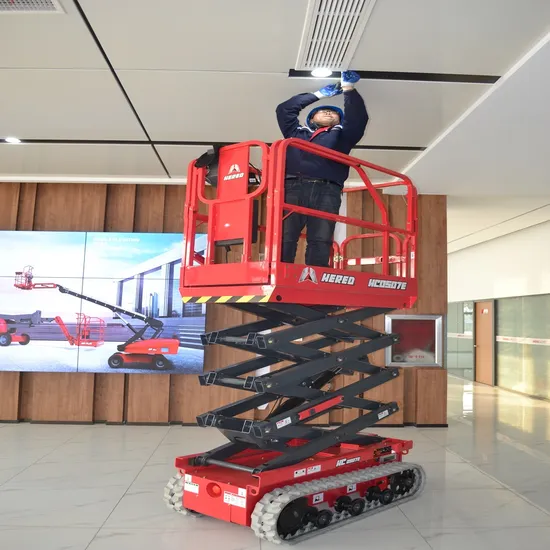

Battery Powered Electric Hydraulic Movable Crawler Scissor Lift Platform
| US$7,200.00-7,700.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HC0507
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Turning Radius
Rotate in Place
up/Down Time
25/20s
Gradeability
0.25
Crawler (mm)
150mmx72mmx43
Drive
Front Crawler
Transport Package
High Quality Paper Boxes with Stretch Film
Specification
1.48m * 0.79m * 2.07m
Trademark
HERED
Origin
China
HS Code
84289090
Production Capacity
20, 000 Units / Year
Packaging & Delivery
Package Size
148.00cm * 79.00cm * 207.00cm
Package Gross Weight
920.000kg
Product Description
Online consultation to get the lowest price1. Compact structure, light weight, accessible elevators.
2. Motor and crawler drive, lower noise, stronger passability.
3. Large capacity batteries, better endurance.
| MODEL | HC0507E |
| A-Max. Platform Height(In/out) | 4.5m/0m |
| Max. Working Height(In/out) | 6.5m/0m |
| B-Platform Length | 1.34m |
| C-Platform Width | 0.72m |
| Extension Size | 0.6m |
| D-Heights (Rails Up) | 2.07m |
| Height (Rails Down) | 1.71m |
| E-Overall Width with Outriggers | 1.48m |
| F-Overall Width | 0.79m |
| G- Ground Clearance | 70mm |
| PERFORMANCE | |
| Platform Capacity | 230kg |
| Extension Capacity | 113kg |
| Max. Occupancy(in/out) | 1/0 |
| Max.Wind Speed | 0m/s |
| Drive Speed (Stowed) | 4km/h |
| Turning Radius | Rotate in Place |
| Up/Down Time | 25/20s |
| Gradeability | 0.25 |
| Max. Slope | 1.5°/3° |
| Leveling angle of the legs | / |
| Drive | Front Crawler |
| Crawler (mm) | 150mmX72mmX43 |
| POWER | |
| Batteries (V/Ah) | 2X12V/100Ah |
| Charger | 100-240VAC/6.3A |
| WEIGHT | |
| Weight | 920kg |
