CNC Machine CNC Drilling Machine Vertical Drilling Machine CNC Lathe
| US$42,000.00-56,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMD-650
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Model
Vmd-650
Item
CNC Deep Hole Drilling Machine
Workbench Size
L700mm X W520mm
Max. Drilling Depth
270mm
Drill Hole Inner Diameter
Dia.1.5~20mm
Spindle Specifications
Bt40
X-Axis Displacement
600mm
Y-Axis Displacement
500
Z-Axis / Z2-Axis Displacement
300/300mm
Transport Package
Standard Exporting Package
Specification
2800x 2880x2600mm
Trademark
TEMY
Origin
China
HS Code
8459210000
Production Capacity
500 Sets/ Year
Product Description

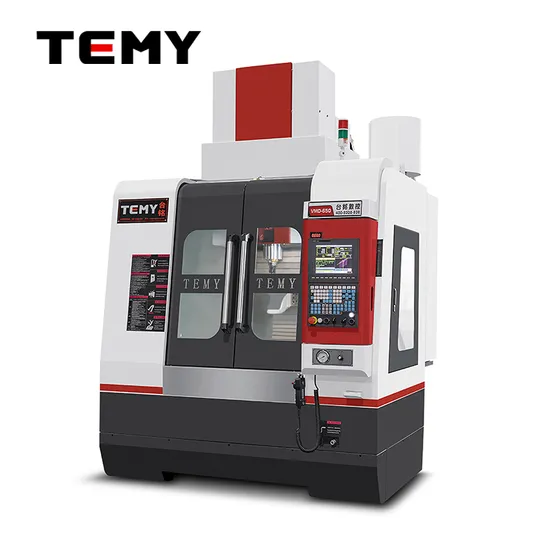

4-Axis Vertical Deep Hole Drilling MachineModel: VMD-650
Description:
Based on the four-axis vertical deep-hole drill, this machine is equipped with high-performance intelligent tool library and telescopic guide sleeve base through scientific and technological innovation. It can perfectly realize the functions of automatic gun drill and guide sleeve, greatly improving the processing efficiency and saving invalid time. Intelligent tool library can be loaded with gun drill, milling cutter, twist drill, U drill, tapping, guide sleeve and other tool accessories, which provides powerful support for diversified processing. It can switch freely in drilling, milling and tapping processes. It is suitable for the processing of various complex parts, such as automotive parts, medical equipment, die manufacturing, etc. The field has been widely used.
Parameter:
| ITEM | UNIT | VMD-650 |
| Drill hole inner diameter | mm | Φ1.5~Φ20 |
| Max. drilling depth | mm | 220 |
| Workbench size (L × W) | mm | 700×520 |
| X-axis displacement | mm | 600 |
| Y-axis displacement | mm | 500 |
| Z-axis / Z2-axis displacement | mm | 300/300 |
| Drilling cutting speed | mm/min | 1~300 |
| Spindle specifications | BT40 | |
| Max. spindle speed | r/min | 10000 |
| Spindle motor power | KW | 7.5~11 |
| Z-axis/Z2-axis AC servo motor power | KW | 3.9/3.9 |
| X-axis AC servo motor power | KW | 2.4 |
| Y-axis AC servo motor power | KW | 3.1 |
| Workbench load capacity | Kg | 500 |
| Machine weight | Kg | 4500 |
| Machine size (L × W×H) | mm | 2800× 2880× 2600 |
