API 5 Dp Standard Seamless Carbon Steel Elbow Structural Heating Furnace Hot Rolling Butted Pipe Mill Machine

Product Description

API Carbon Steel Elbow structural Hot Forming Machine for φ90A-R Hot rolling Seamless Pipe Butted Welded Pipe with High Quality Induction Heating

Project overview

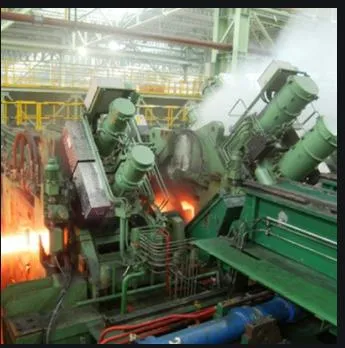

According to customer's requirements, the Ф90A-R hot rolling line is arranged. The unit adopts walking beam heating furnace, new type of cone type piercing mill, precision A-R pipe rolling mill, SRM, chain type cooling bed, and ten rolls high precision straightening machine and other advanced equipment. The annual output of the unit is about 40,000 tons.
Parts of technical details

No.	Item	Pipe size			Steel grade	Capacity	Standard
		OD mm	WT mm	L m
1	Oil pipe,linepipe	33.4	3.38	12	J,K,N,L,P		API 5DP
2	Oil pipe,linepipe	33.4	4.55	12	J,K,N,L,P		API 5DP
3	Oil pipe,linepipe	33.4	6.35	12	J,K,N,L,P		API 5DP
4	Oil pipe,linepipe	42.2	3.56	12	J,K,N,L,P		API 5DP
5	Oil pipe,linepipe	42.2	4.85	12	J,K,N,L,P		API 5DP
6	Oil pipe,linepipe	42.2	6.35	12	J,K,N,L,P		API 5DP
7	Oil pipe,linepipe	48.3	3.68	12	J,K,N,L,P		API 5DP

Main equipment of the unit
--Billet cutting(Band saw)
--Walking beam heating furnace
--New type cone type piercing mill
--Precision A-R pipe rolling mill
--18 stands SRM
--Induction heating furnace
--Chain type cooling bed
--Ten rolls high precision straightening machine
--Pre-finishing line (pipe cutting, magnetic flux leakage testing, checking, measuring length and weight, marking)
Process Drawing
Our partners
Certificate display
Packing &shipping
Design& manufacture and acceptance standard
Organization name Abbreviation
International Organization for Standardization ISO
National Standard of the People's Republic of China GB
Professional Standards of the People's Republic of China ZB
Ministry of Machinery Standards (Original) JB
Ministry of Metallurgical Standard (Original) YB
Please contract us if you are interested in our machine line . Tks.
