Easy-Cleaning Design Cartridge Filters Powder Coating Spray Booth

Product Description

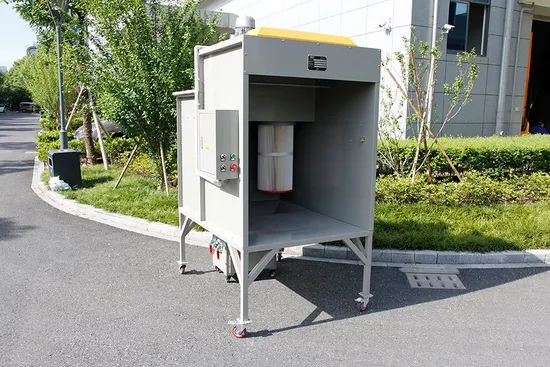

COLO-0811 Easy-Cleaning Design Cartridge Filters Powder Coating Spray Booth
view the video in https://youtu.be/gvnEZmQOAYA
How does Powder Booth Work
Powder Booth Feature
1,Flexible and efficient :
Available in various models and extraction capacity, is the ideal solution from small series to mass production.

COLO-S-1517
COLO-S-1115

2,Compact design, easy to integrate in every line
Powder booth have a space-saving design, integrated control unit and are mounted on rollers, to make it easy to move when needed.




3,Easy to clean for color change
Interchangeable cartridges and a powder coated steel base section allow to easily clean the booth if color change operation is needed.



Powder Booth Data

Booth Type	Closed
Operator dimensions	1000width*800depth*1000mmHeight
Overall dimensions	1300width*1900depth*2100mmHeight
Weight	350kg
Power supply	Electric
Nominal power	1.5kw
Voltage	110V /220V/380V (as required)
Frequency	50-60Hz
Filters	Polyester
Filters count	2 (325*600)
Filters hang type	easy for change
Filter cleaning system	Pneumatic
Air consumption	4000m3/h
Warranty	12 months
model	Colo-0811

Application: small powder coating spary booth for car & bike accessories, or small metal parts.
Advantages: Economic price, portable type, powder saving model.
Full set Including
1) fan motor
2) control unit
3) powder recover tank,
4) filter
5) booth chamber
Specification:

Worksize dimensions	700width x 1000height x 1000 depth
Overall dimensions	900 width x 1200 height x 1200 depth
Power supply	Electric/ 4kw
Voltage/Frequency	380V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 1-3°C
Temperature max.	250° C
Ventilation performance	805-1677m3/h
Motor power	0.75kw
Warranty	12 months
