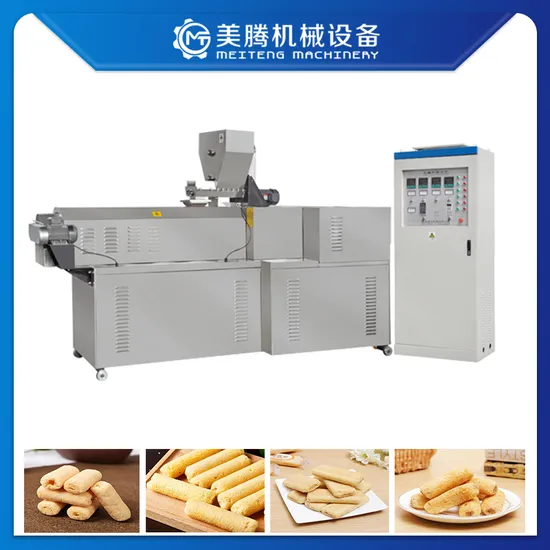

Corn Puff Extruder Double Screw Extruder Machine

Product Description

Puff Snacks Processing Line
1.Corn snacks machine is a new type of extruding food processing line studied and developed by ourselves on the basis of learning from advanced technology in the world so that its technical performance and quality of products both reach to the most advanced in the world. This line will finish mixing, extruding, drying flavoring, packing in one-pass operation automatically. This line features lots of types, flexible collocation, extensive applied materials, various products and easy operation.
2. Raw materials: adopts corn, rice, wheat, oat, barley etc as ingredients
3. Products:Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder
4. Capacity: 150kg/h, 240kg/h, 500kg/h even higher
5. Flow chart:Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
7. Machines Materials: All the machines are made by stainless steel

8. Technical Parameters

Model	Installed Power	Power Consumption	Output	Size
MT65 Inflating Snacks Process Line	84kw	59kw	120-150kg/h	21000*1200*1500MM
MT70 Inflating Snacks Process Line	132kw	92kw	200-250kg/h	23000*1500*2200MM
MT85 Inflating Snacks Process Line	239kw	167kw	500-700kg/h	28000*3500*4300

Features of Double-screw Extruder a. Screw with 38CrMoAL excellent material and being Nitriding treatment Made in Zhoushan, Zhejiang Province China. The HRC hardness is around 60---62.The screws are made by alloy steel and special craft, the screw life is longer. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
b.The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
c.The gearbox has automatic lubrication function, with extends gear life.
d.Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
e.We use SIEMENS (CHINA)electrical parts.
f. Main Motor from SIEMENS(CHINA) or other famous brand, ensure its Powerful Extrusion and Excellent Performance.
Our Services 1. We can provide factory layout according to customer's factory size in advance.
2. When we received your deposit of this order, we will ask our engineers to prepare to apply the visa, when the corn flakes processing line arrived your country, and we will send two engineers to go and help you to install the corn flakes line, teach your worker(3or 4 workers) how to operate the corn flakes line, until your worker know the corn flakes line well.
3. Our engineers has responsibility to teach your worker how to clean the extruder, how to change the screw, how to change barrel etc. and we have responsibility to provide technology support with you forever.
4. Our engineers can provide basic formula for producing the corn flakes, breakfast cereals, snack food etc. and help customer to produce good quality food according customer's detailed formula.
5. We provide the spare parts will at preferential price for an extended long time.
6. other item:
a). Free consultation service before, during, and after sales;
b). Free project planning and design services;
c). Free debugging of equipment until everything is functional;
d). Free management of equipments' long distance shipping;
e). Free training of equipment maintenance and operating personally;
f ). Free new production techniques and formulas;
g). Provide 1 year complete warrantee and life-time maintenance service;
