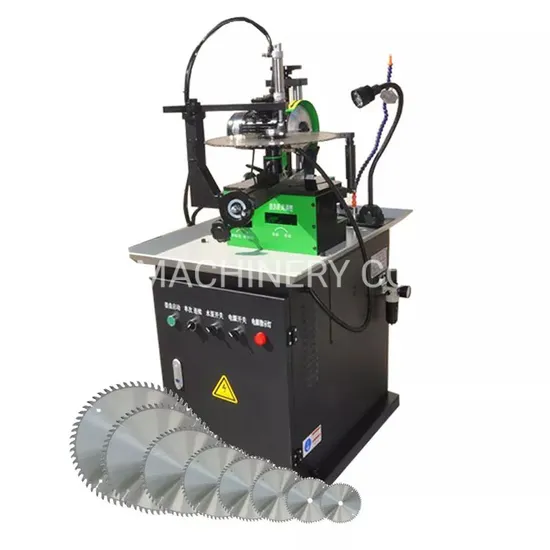

Automatic Circular Saw Blade Sharpening Machine of Surface Grinding Machine for Power Drill

Product Description

Automatic circular saw blade sharpening machine of surface grinding machine for power drill Product Description

Intruduction of Automatic circular saw blade sharpening machine of surface grinding machine for power drill

1. We R & D and product MCJ-05 type fourth-generation automatic saw blade grinding machine, with intuitive structure, simple operation, practical, precise, beautiful and so on.
2. According to different chip requirements to change the cutting angle of the sawtooth, tooth, tooth depth, can easily grind sharp blade.
3. Can be grinding blade material: high-speed steel (HSS) saw blade, flying saw (manganese steel) saw blade.
4. Can wear a variety of teeth. (Left and right teeth, arc teeth, triangular teeth, high and low teeth)
5. According to the different cutting requirements to quickly adjust the grinding time of the blade.
6. The handpiece can be tilted up or down, no need to change the grinding wheel can chamfer.

Features of Automatic circular saw blade sharpening machine of surface grinding machine for power drill

1. Saw blade fixing mechanism
2. Automatic dialing sawtooth mechanism
3. Saw blade automatic compression mechanism
4. Grinding wheel grinding mechanism
5. Electrical control mechanism
6. Cutting fluid cooling mechanism

Working principles of Automatic circular saw blade sharpening machine of surface grinding machine for power drill

The machine is completely mechanical interlock linkage to complete the repair of the saw blade grinding:
After the sawtooth feeding, the cylinder compression blade, dial needle returned, grinding wheel mechanical linkage feed grinding, and then return, the cylinder release, Tooth feed, automatic mechanical reciprocating motion, to achieve the saw blade grinding function. With a straightforward structure, simple operation, easy to learn, quality and cheap and so on.
Technique: The grinding blade to be pressed on the saw blade fixed shaft, adjust the pitch of the dial teeth, adjust the grinding wheel grinding angle and feed distance, after starting the machine,adjus the grinding wheel feed and automatic finish saw blade grinding.
Detailed Photos
Product Parameters
Technical parameters of Automatic circular saw blade sharpening machine of surface grinding machine for power drill

No.	Item Name	Specification
1	Model	YCJ-A6
2	Power supply	Custom require
3	Power	850W
4	Saw web diameter	120-600mm
5	Dial the tooth pitch	3-80mm
6	Grinding speed	Stepless speed regulation
7	Grinding wheel specification	15150(Outer diameter) * 32(Hole diameter)*10 (Thickness)mm Single beveled diamond wheel
8	Grinding wheel rotate speed	2800rpm
9	Weight	168kg
10	Package weight	870(L)*639(W)*1310(H)mm

Automatic circular saw blade sharpening machine of surface grinding machine for power drill
