Factory Sales Waste Plastic Recycling Grinding/Milling Machine Wall Panel/Pipe/WPC/PVC Pulverizer

Product Description

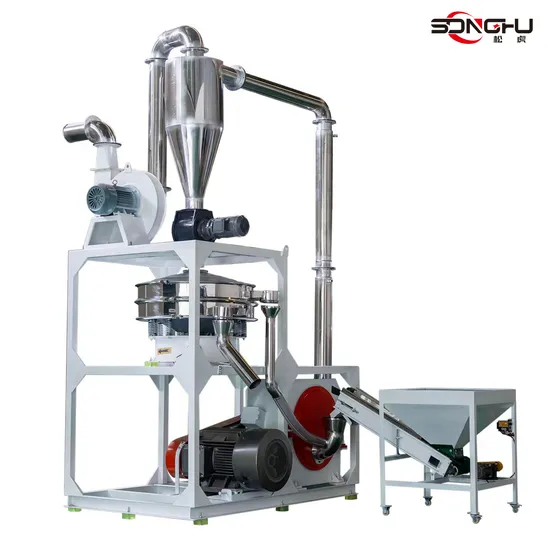

The internal structure of the SHXR PVC Pulverizer is a knife disc type with blades. The motor drives the rotating knife disc to rotate at a high speed. The knife disc blade and the tile rotate at a high speed to grind the particles or flakes into powder. The mesh size is between 5 mesh and 100 mesh. The accurate mesh size is to be screened out through the vibrating screen mesh size.

Model	SHXR-500	SHXR-660	SHXR-800
Pulverizing chamber diameter	φ483 +1	φ583 +1	φ783 ±1
Main motor power	37/45KW	55/75/90KW	110/132KW
Type of cooling	Water Cooling System
Suction fan power	4/5.5KW	7.5/11KW	11/15KW
Off fan power	1.1/1.5/2.2KW	1.1/1.5/2.2KW	1.1/1.5/2.2KW
Vibration screen	ZDS-800/1000mm	ZDS-1200/1500mm	ZDS-1500mm
Output	100-500kg	200-1200kg	500-1500kg
Weight	1500kg	1800kg	2000kg
Size	1700*790mm	1800*790mm	1900*790mm

1. The new disc design is of high quality, with strong resistance, and its lifespan is twice that of ordinary discs.
2. The newly designed professional bearings have a high rotation rate. At the same time, using only one drive motor ensures efficient grinding, which greatly reduces machine operation time and engineering control.
3. Easy installation and maintenance; simply open the door to clean.
4. The entire milling process is sealed, preventing dust leakage.
5. Fully automatic design with automatic feeding, discharging, and sorting.
6. Grinding gap adjustment is simple; use a feeler gauge and adjust bolts for fine-tuning.
7. The mill uses a water and wind dual cooling system to prevent overheating of bearings and other parts.
8. Well-known brand accessories, such as bearings and Siemens motors, ensure long-term operation, saving the hassle of frequent replacements.
9. A wide range of optional accessories is available, allowing for professional solutions tailored to the customer's budget and processing requirements.

All Hard Plastic Scraps	Plastic steel	Gusset plate	Eco-wood
	Corner line	Stone plastic line	PVC profile
	Wallboard	Pipe	Architectural template
	Foam board	SPC	WPC floor
	Resin tile	ASA Synthetic Resin Roor Tile	Wood veneer
	Carbon crystal plate	Foam wall panels	Stone plastic wall panel

Wuxi Songhu Xinrui Machinery Co., Ltd. is a professional manufacturer of PE mills and PVC crusher equipment. We have an excellent R&D team and technicians, which lays the foundation for producing high-quality machines.
Established in 2007, Songhu Xinrui has been committed to providing the world with the best quality plastic PE grinding and PVC crushing machinery. With a top-notch team and the strictest manufacturing standards, Songhu Xinrui has become a leader in domestic plastic machinery manufacturing. Our products include PE grinding machines, PVC crushing machines, and other plastic recycling machinery, suitable for sheets, small pipes, plastic steel, resin tiles, wall panels, buckle plates, pipes, foam boards, footings, and many other materials. Songhu Xinrui's products have been exported to more than 50 countries and regions worldwide.
Q: Are you a machinery factory or a trading company?
A: We have our factory, which allows us to strictly guarantee product quality and lead times.
Q: If we have a very special request for the production line, can you help with the design?
A: Yes, our experienced mechanical designers can provide customized designs.
Q: Do you provide material testing services?
A: Yes, we offer testing services for our machines. An additional testing fee will apply, depending on the costs (electricity, labor). However, if you purchase with us, the testing fee will be deducted from the machine's purchase cost.
Q: How can I ensure the machine runs well in my plant?
A: We conduct a home commissioning in our factory for your inspection. If needed, we can send engineers for installation assistance and staff training, and to address any issues.
Q: How can I get a quote efficiently?
A: Click the 'Send an Inquiry' button at the bottom of the page or 'Chat Now' on the right side. Leave a message with details of your final products (including pictures and size drawings) and capacity requirements. We will respond within 12 hours.
Q: How can we visit your company and machines?
A: Our factory is located in Wuxi, Jiangsu Province, China.
Q: What are the payment methods?
A: We accept T/T, L/C, Western Union, etc.
