Hight Quality Farm Machinery Disc Tiller on Promotion

Product Description

Hight quality Farm machinery Disc Tiller on Promotion
1LYQ 1LY(T) The one-way disc plough is suitable for ploughing up the cultivated land as well as virgin land, especially on high yield's manure land, wheat and rice stubble fields. Good pass ability and penetration, complete inversion and coverage.Moreover, the plough has the merits of less working resistance and easy to operate and adjust, etc.

1LX(SX) Two-way disc plough products are mainly used for tillage on dry cultivated or fallow land. They not only have the function of ordinary disc plough, but also have the characteristics of short idle distance of travel on the edge of fields, high productivity,low oil consumption etc. They are also suitable for working on terraced fields and small piece of farming land.

The 1LYX disc plough is completely mounted with tractor.In the operation process, the disc is rotating to turn the soil.Particularly, it is suitable for operation on the field with grasses straw and stems of crops or plants, big soil resistance and with many stones and break brickbat, etc.In the field, it is good at cutting grasses and straw, free from stopped by the grasses soil or stones. etc. lt is efficient in the work. lt is of good quality during operation. It is easy to adjust and strong and durable.

YJ-1LYTA series disc tiller is designed for field work as breaking hardened and impervious soil surface. shattering soil after tillage. planting the land before tillage. lt can make soil and fertilizer mix up, clear away the stump of plants and it can be used on cultivated land for tillage, harrowing instead of ploughing.This disc tiller is scientific in design, durable in service. ready to operate. easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with smooth. All these satisfy the agricultural requirements of intensive cultivation, and have the characteristics of small tillage resistance and easy operation.

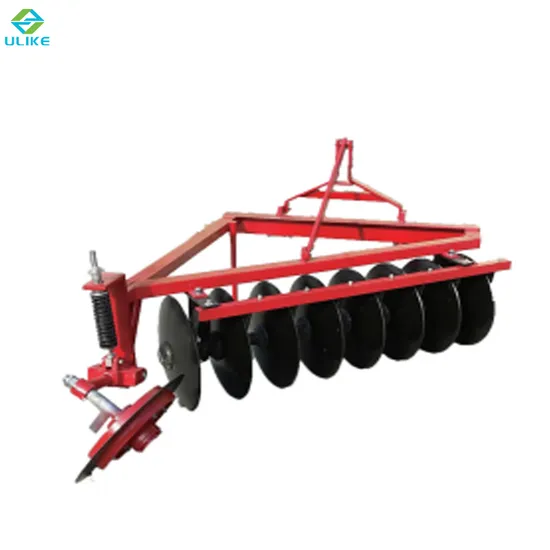

YJ-1LYST This 6/7/8 disc tiller is designed for field work as breaking hardened and impervious soil surface shattering soil after tillage, planting the land before tillage. lt can make soil and fertilizer mix up, clear away the stump of plants and it can be used on cultivated land for tillage, harrowing instead of ploughing.This disc tiller is scientific in design, durable in service, ready to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with smooth. All these satisfy the agricultural requirements of intensive cultivation, and have the characteristics of small tillage resistance and easy operation.
Product Parameters

One-way Disc Plough Series Specification
Type	1LYQ-315	1LYQ-320	1LYQ-420	1LY(T)-225	1LY(T)-325	1LY(T)-425	1LY(T)-525	1LY(T)-625
Working width (mm)	480	600	800	500	750	1000	1250	1500
Working depth (mm)	180	200	200	250-300	250-300	250-300	250-300	250-300
No.of disc (pc)	3	3	4	2	3	4	5	6
Dia.of disc (mm)	450	500	510	660	660/710	660/710	660/710	660/710
Weight (kg)	170	190	250	290	420	480	580	750
Linkage	Three point mounted			Type ll three point mounted
Matched power (hp)	18-20	25-30	35-50	35-50	55-65	65-80	100	120

1LYX Disc Plough Series Specification
Type	1LYX-230	1LYX-330	1LYX-430	1LYX-530	1LYX-630
Working width (mm)	600	900	1200	1500	1800
Working depth (mm)	250-300
No.of disc (pc)	2	3	4	5	6
Dia.of disc (mm)	660/710
Weight (kg)	340	430	520	650	750
Linkage	Three point mounted
Matched power (hp)	40-50	50-80	80-100	100-120	120-160

Two-way Disc Plough Series Specification
Type	1LX(SX)-325	1LX(SX)-425	1LX(SX)-525	1LX(SX)-625
Working width (mm)	750	1000	1250	1500
Working depth (mm)	250-300
No.of disc (pc)	3	4	5	6
Dia.of disc (mm)	600
Weight (kg)	700	800	900	1000
Linkage	Type ll three point mounted
Matched power (hp)	65-80	80-100	100-120	120-160

6/7/8 Disc Tiller Series Specification
Type	YJ-1LYST-6	YJ-1LYST-7	YJ-1LYST-8
Working depth (mm)	140-180
Working width (mm)	1200	1400	1600
Weight (kg)	300	1400	340
No.of discs (pc)	6	7	8
Matched power (hp)	45-50	50-60	60-70
Dia.Of disc (mm)	560/610/660
Linkage	Type ll three point mounted

YJ-1LYTA series disc tiller Series Specification
Type	YJ-1LYTA-622	YJ-1LYTA-722	YJ-1LYTA-822	YJ-1LYTA-922	YJ-1LYTA-1022
Working width (mm)	1320	1540	1760	1980	2200
Working depth (mm)	140-180
Disc quantity (pc)	6	7	8	9	10
Dia.Of disc(mm)	560
Weight (kg)	300/350	320/390	350/420	380	400
Linkage	Type ll three point mounted
Matched power (hp)	≥45	≥55	≥60	≥65	≥70
Ground clearance(mm)	>300
