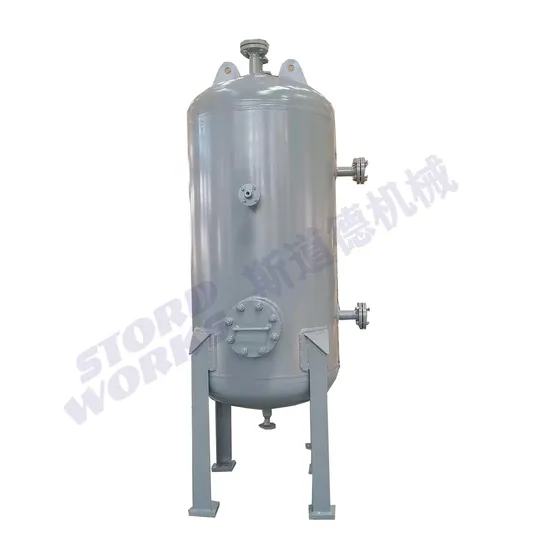

Industrial Tank Chemical Agitator Mixer Continuous Stirred Tank Reactor

Product Description

1.storage tank, spherical tank, carbon steel storage tank,low-alloy steel storage tank, stainless steel storage tank and so on.
2. Materials: carbon steel, low-alloy steel, stainless steel and non-ferrous metals: titanium, nickel, copper, aluminum, molybdenum, zinc, cobalt etc and their alloy materials. 3. Pressure: low-pressure, medium-pressure and high-pressure. 4. Temperature: low-temperature heat exchanger, medium-temperature heat excahnger but also high-temperature heat exchanger. 5. Medium: not only non-flammable,non-toxic and non-corrosive medium but also flammable,toxic,corrosive medium and highly flammable,highly toxic, highly corrosive medium. 6. Processing capacity:maximum diameter:6m; maximum length:60m;maximum weight:600tons 7. Applicable Industries: petrochemical, coal chemical, precision chemical, nuclear power, metallurgical, pharmaceutical, machinery, food, pesticide, rubber, aerospace, marine, dye, new power equipment and so on. 8. Our advantages: reliable quality,codial service and great price. Hydro test or pneumatic test will be carried out for each pressure vessel, and then issue test report.
Main Technical Parameters of Product

Specification	Nominal Diameter	Nominal Diameter of Jacket	Motor Power	Model of Gearbox	Stirring Speed
30	400	500	0.6	BLD 0.6-1	60-100
50	500	600	0.8	BLD 0.8-1	60-100
100	550	650	1.1	BLD 1.1-1	60-100
150	600	700	2.2	BLD 2.2-2	60-100
200	650	750	2.2	BLD 2.2-2	60-100
300	800	900	3	BLD 3-2	60-100
500	900	1000	3	BLD 3-2	60-100
800	1100	1200	4	BLD 4-2	60-100
1000	1200	1300	4	BLD 4-3	60-100
1500	1300	1400	4	BLD 4-3	60-100
2000	1400	1500	5.5	BLD 5.5-3	60-100
2500	1400	1500	7.5	BLD 7.5-4	60-100
3000	1400	1500	7.5	BLD 7.5-4	60-100
3500	1400	1500	7.5	BLD 7.5-4	60-100
4000	1500	1600	7.5	BLD 7.5-4	60-100
5000	1600	1700	7.5	BLD 7.5-4	60-100
6000	1800	1900	15	BLD 15-5	60-100
18000	2000	2100	15	BLD 15-5	60-100
32000	3000	3200	37	BLD 37-56A	35-59
80000	4000	4200	55	BLD 55-56A	35-59

Company Information
Located in Fangqiao National Machinery Industrial Park, at the Taihu Lake, Yixing City, Jiangsu, China, JIANGSU STORD WORKS LTD. is home to more than 180 employees , covers an area of 25000 M2 and has more than 70 various manufacturing and testing devices, with the maximum lifting capacity of 100T and the maximum plate rolling capacity of 120mm. StordWorks has the specialized drying machine production workshop and advanced machining centers. We also have various international pressure vessels certification and abundant experiences in equipment manufacturing, such as National standard pressure vessel certification, American ASME certification, Norske Veritas DNV certification and EU PED certification. Jiangsu StordWorks adheres to the business philosophy of "Focusing on Professionalism & Quality First", and the service concept of "Customer-orientation and Exceeding Customer Satisfaction". By means of our excellent quality and perfect service, JiagnsuStord Works Ltd. sincerely looks forward to cooperating with you!
Packing & Shipping
1) Carefully check the quantity and quality of equipment before packing. 2) Good packed by plastic wrap. 3) Fittings and spare parts are packed in wooden pallet . 4) Suitable for export transport and sea freight 5) Add labels and shipping mark.
