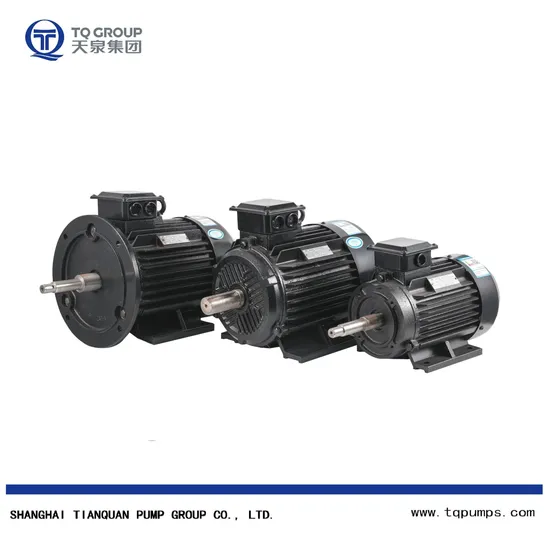

Ie3 Three Phase Squirrel Cage AC Asynchronous Induction Electric Motor 3000r/Min

Ie3 Three Phase Squirrel Cage AC Asynchronous Induction Electric Motor 3000r/Min

US$200.00-4,000.00 20 Pieces (MOQ)

Basic Info.

Model NO.
IE3-2
Number of Stator
Three-Phase
Species
Y, Y2 Series Three-Phase
Rotor Structure
Squirrel-Cage
Casing Protection
Closed Type
Number of Poles
2
Starting Mode
y-δ Starting
Certification
ISO9001, CCC, CE
Motor Frame Material
Casting Iron
Insulation Class
F (IEC 85)
Protection Grade
IP54/IP55
Wire Material
Copper Wire
Construction and Mounting Type
B5 B35 B3 V1
Cooling Method
IC411 Fan Cooling
Efficiency Class
Ie3 (IEC 34-30-1)(GB18613-2020 3)
Voltage
380V/400V/415V/660V/Customized
Frequency
50Hz
Safety Factor
1.10
Duty
S1
Stator Winding
Copper Wire
Center Height
63-355
Transport Package
Wooden Package
Trademark
Chaoda
Origin
China
HS Code
8501530090
Production Capacity
50000 PCS/Yrs

Packaging & Delivery

Package Size
50.00cm * 50.00cm * 50.00cm
Package Gross Weight
50.000kg

Product Description

Product Description Three Phase Induction AC Asynchronous Electric Motor
IE3 motors are totally enclosed and fan-cooled (TFEC). Three-phase squirrel cage induction motors. They are newly designed in conformity with the relevant requirements of IEC standards. Motors have outstanding performance, such as high efficiency, energy-saving, high starting torque, low noise, little vibration, reliable operation, and easy maintenance, etc.Y series motors are widely used in many occasions, such as machines, fans, pumps, compressors mine, construction, etc.
working condition Amminbent Temperature
HAIBA
Product Advantage

Certifications
Product Parameters

Type		 Rated
Output		 Current Speed Efficiency Power Factor Rated Torque Locked Torque
Rated Torque		 Locked Current
Rated Current		 Max Torque
Rated Torque		 Sound
kw A r/min Eff. % P . F N . m TN Ist
TN		 TN dB(A)
Constant Speed 3000 r/min
YE3 - 63MI - 2 0 . 1 8 0 . 52 2720 65 . 9 0 . 80 0 . 63 2 . 3 7 . 0 2 . 2 61
YE3 - 63M2 - 2 0 . 25 0 . 67 2720 69 . 7 0 . 81 0 . 88 2 . 3 7 . 0 2 . 2 61
YE3 - 71 M1 - 2 0 . 37 0 . 94 2740 73 . 8 0 . 81 1 . 29 2 . 3 7 . 0 2 . 2 64
YE3 - 71 M2 - 2 0 . 55 1 . 3 2740 77 . 8 0 . 82 1 . 92 2 . 3 7 . 0 2 . 3 64
YE3 - 80M1 - 2 0 . 75 1 . 7 2870 80 . 7 0 . 82 2 . 50 2 . 3 7 . 0 2 . 3 62
YE3 - 80M2 - 2 1.1 2 . 4 2875 82 . 7 0 . 83 3 . 65 2 . 2 7 . 6 2 . 3 62
YE3 - 90S- 2 1 . 5 3 . 2 2880 84 . 2 0 . 84 4 . 97 2 . 2 7 . 9 2 . 3 67
YE3 - 90L- 2 2 . 2 4 . 6 2880 85 . 9 0 . 85 7 . 30 2 . 2 7 . 9 2 . 3 67
YE3 - 100L- 2 3 6 2880 87 . 1 0 . 87 9 . 95 2 . 2 8 . 5 2 . 3 74
YE3 - 112M- 2 4 7 . 8 291 5 88 . 1 0 . 88 1 3 . 1 2 . 2 8 . 5 2 . 3 77
YE3 - 132S1 - 2 5 . 5 10.6 2935 89 . 2 0 . 88 1 7 . 9 2 . 0 8 . 5 2 . 3 79
YE3 - 132S2 - 2 7 . 5 1 4 . 4 2930 90 . 1 0 . 88 24.4 2 . 0 8 . 5 2 . 3 79
YE3 - 160M1 - 2 11 20 . 6 2950 91 . 2 0 . 89 35 . 6 2 . 0 8 . 5 2 . 3 81
YE3 - 160M2 - 2 1 5 27 . 9 2945 91 . 9 0 . 89 48 . 6 2 . 0 8 . 5 2 . 3 81
YE3 - 160L- 2 1 8 . 5 34 . 2 2945 92 . 4 0 . 89 60 2 . 0 8 . 5 2 . 3 81
YE3 - 180M- 2 22 40 . 5 2950 92 . 7 0 . 89 71 . 2 2 . 0 8 . 5 2 . 3 83
YE3 - 200LI - 2 30 54 . 9 2965 93 . 3 0 . 89 96 . 6 2 . 0 8 . 5 2 . 3 84
YE3 - 200L2 - 2 37 67 . 4 2965 93 . 7 0 . 89 119 2 . 0 8 . 5 2 . 3 84
YE3 - 225M- 2 45 80.8 2965 94 . 0 0 . 90 1 45 2 . 0 8 . 0 2 . 3 86
YE3 - 250M- 2 55 98 . 5 2975 94 . 3 0 . 90 1 77 2 . 0 8 . 0 2 . 3 89
YE3 - 280S- 2 75 1 34 2975 94 . 7 0 . 90 241 1 . 8 7 . 5 2 . 3 91
YE3-280M- 2 90 160 2975 95 . 0 0 . 90 289 1 . 8 7 . 5 2 . 3 91
YE3-280M1-2 110 1 95 2975 95 . 2 0 . 90 353 1 . 8 7 . 5 2 . 0 91
YE3-315S-2 110 1 95 2958 95 . 2 0 . 90 352 1 . 8 7 . 5 2 . 3 92
YE3-315M-2 1 32 234 2958 95 . 4 0 . 90 422 1 . 8 7 . 5 2 . 3 92
YE3-315L1-2 160 279 2958 95 . 6 0 . 90 51 2 1 . 8 7 . 5 2 . 3 92
YE3-315L-2 1 85 323 2958 95 . 7 0 . 91 592 1 . 8 7 . 5 2 . 3 92
YE3-315L2-2 200 349 2958 95 . 8 0 . 91 640 1 . 8 7 . 5 2 . 2 92
YE3-315L3-2 220 383 2958 95 . 8 0 . 91 704 1 . 8 7 . 5 2 . 2 92
YE3-355M1-2 220 383 2958 95 . 8 0 . 91 704 1 . 8 7 . 5 2 . 2 100
YE3-355M-2 250 436 2958 95 . 8 0 . 91 800 1.6 7 . 5 2 . 2 100
YE3-355L1 - 2 280 488 2958 95 . 8 0 . 91 896 1.6 7 . 5 2 . 2 100
YE3-355L-2 315 549 2958 95 . 8 0 . 91 1008 1.6 7 . 5 2 . 2 100
YE3-355-1-2 355 61 9 2958 95 . 8 0 . 91 1136 1.6 7 . 5 2 . 2 100
YE3-355-1-2 375 654 2958 95 . 8 0 . 91 1 200 1.6 7 . 5 2 . 2 100
Mounting Dimensions
B3-Frame POLES Installation Dimension Outline Dimension
A B C D E F G H K AA HA AB AC AD HD L
63M 2 , 4 100 80 40 11 23 4 8.5 63 7 30 8 135 1 35 70 180 230
71M 2 , 4 , 6 112 90 45 14 30 5 11 71 7 32 8 150 1 45 80 195 255
80M 2 , 4 , 6 , 8 125 100 50 19 40 6 15.5 80 10 32 10 160 1 65 1 45 225 305
90S 2 , 4 , 6 , 8 140 100 56 24 50 8 20 90 10 34 12 180 1 80 1 65 255 360
90L 2 , 4 , 6 , 8 125 390
100L 2 , 4 , 6 , 8 160 140 63 28 60 8 24 100 12 39 14 200 205 1 75 275 435
112M 2 , 4 , 6 , 8 190 140 70 28 60 8 24 112 12 45 14 230 225 1 90 300 440
132S 2 , 4 , 6 , 8 216 140 89 38 80 110 33 132 12 55 18 265 270 . 220 350 510
132M 178 550
160M 2 , 4 , 6 , 8 254 210 108 42 110 1 2 37 160 15 65 20 31 5 320 260 420 670
160L 254 700
180M 2 , 4 , 6 , 8 279 241 121 48 110 1 4 42.5 180 15 70 22 355 360 265 445 720
180L 279 760
200L 2 , 4 , 6 , 8 318 305 133 55 110 116 49 200 19 74 26 395 400 305 505 780
225S 4 , 8 356 286 149 60 140 18 53 225 19 78 28 435 450 325 550 815
225M 2 311 55 110 16 49 810
2 , 4 , 6 , 8 60 1 40 18 53 840
250M 2 406 349 168 60 140 18 53 250 24 80 30 490 510 380 630 920
2 , 4 , 6 , 8 65 58
280S 2 457 368 190 65 140 18 58 280 24 90 35 545 550 395 675 965
2 , 4 , 6 , 8 75 20 67.5
280M 2 419 65 18 58 1015
2 , 4 , 6 , 8 75 20 67.5
315S 2 508 406 21 6 65 140 18 58 315 28 120 45 635 630 540 855 1180
2 , 4 , 6 8 1 0 80 170 22 71 1210
315M 2 457 65 140 1 8 58 1215
2 , 4 , 6 , 8 , 1 0 80 170 22 71 1245
315L 2 508 65 140 1 8 58 1290
2 , 4 , 6 , 8 , 1 0 80 170 22 71 1320
355M 2 610 560 254 75 140 20 67.5 355 28 130 52 735 715 645 1000 1390
2 , 4 , 6 , 8 , 1 0 95 170 25 86 1420
355L/L1 2 630 75 140 20 67.5 1500
2 , 4 , 6 , 8 , 1 0 95 170 25 86 1530
355L/L2 2 80 170 22 71 1530
2 , 4 , 6 , 8 , 1 0 110 210 28 100 1570

B35-Frame POLES Installation Dimension Outline Dimension
A B C D E F G H K M N P R S T AA HA AB AC AD HD L
63M 2 , 4 100 80 40 11 23 4 8 . 5 63 7 115 95 140 0 4 - Φ1 0 3 30 8 135 135 70 180 230
71M 2 , 4 , 6 112 90 45 14 30 5 11 71 7 130 110 150 0 4 - Φ1 0 3 . 5 32 8 150 145 80 195 255
80M 2 , 4 , 6 , 8 125 100 50 19 40 6 15 . 5 80 10 165 130 200 0 4 - Φ1 2 3 . 5 32 10 160 165 145 225 305
90S 2 , 4 , 6 , 8 140 100 56 24 50 8 20 90 10 165 130 200 0 4 - Φ1 2 3 . 5 34 12 180 180 165 255 360
90L 2 , 4 , 6 , 8 125 390
100L 2 , 4 , 6 , 8 160 140 63 28 60 8 24 100 12 215 180 250 0 4 - Φ1 5 4 39 14 200 205 175 275 435
112M 2 , 4 , 6 , 8 190 140 70 28 60 8 24 112 12 215 180 250 0 4 - Φ1 5 4 45 14 230 225 190 300 440
132S 2 , 4 , 6 , 8 216 140 89 38 80 10 33 132 12 265 230 300 0 4 - Φ1 5 4 55 18 265 270 220 350 51 0
132M 178 550
160M 2 , 4 , 6 , 8 254 210 108 42 110 12 37 160 15 300 250 350 0 4 - Φ1 9 5 65 20 315 320 260 420 670
160L 254 700
180M 2 , 4 , 6 , 8 279 241 121 48 110 14 42 . 5 180 15 300 250 350 0 4 - Φ1 9 5 70 22 355 360 265 445 720
180L 279 760
200L 2 , 4 , 6 , 8 318 305 133 55 110 16 49 200 19 350 300 400 0 4 - Φ1 9 5 74 26 395 400 305 505 780
225S 4 , 8 356 286 149 60 140 18 53 225 19 400 350 450 0 8 - Φ19 5
5		 78 28 435 450 325 550 815
225M 2 311 55 110 16 49 810
2 , 4 , 6 , 8 60 140 18 53 840
250M 2 406 349 168 60 140 18 53 250 24 500 450 550 0 8 - Φ19 5 80 30 490 510 380 630 920
2 , 4 , 6 , 8 65 58
280S 2 457 368 190 65 140 18 58 280 24 500 450 550 0 8 - Φ19 5 90 35 545 550 395 675 965
2 , 4 , 6 , 8 75 20 67 . 5
280M 2 419 65 18 58 1015
2 , 4 , 6 , 8 75 20 67 . 5
315S 2 508 406 216 65 140 18 58 315 28 600 550 660 0 8 - Φ24 6 120 45 635 630 540 855 1180
2 , 4 , 6 8 1 0 80 170 22 71 1210
315M 2 457 65 140 18 58 1215
2 , 4 , 6 , 8 , 1 0 80 170 22 71 1245
315L 2 508 65 140 18 58 1290
2 , 4 , 6 , 8 , 1 0 80 170 22 71 1320
355M 2 610 560 254 75 140 20 67 . 5 355 28 740 680 800 0 8 - Φ24 6 130 52 735 715 645 1000 1390
2 , 4 , 6 , 8 , 1 0 95 170 25 86 1420
355L/L1 2 630 75 140 20 67 . 5 1500
2 , 4 , 6 , 8 , 1 0 95 170 25 86 1530
355L/L2 2 80 170 22 71 1530
2 , 4 , 6 , 8 , 1 0 110 210 28 100 1570
B5-Frame POLES Installation Dimension Outline Dimension
D E F G M N P R S T AC AD HF L
63M 2 , 4 11 23 4 8 . 5 115 95 1 40 0 4 - Φ1 0 3 135 70 140 230
71 M 2 , 4 , 6 14 30 5 11 130 110 1 50 0 4 - Φ1 0 3 . 5 145 80 160 255
80M 2 , 4 , 6 , 8 19 40 6 15 . 5 165 130 200 0 4 - Φ1 2 3 . 5 165 145 245 305
90S 2 , 4 , 6 , 8 24 50 8 20 165 130 200 0 4 - Φ1 2 3 . 5 180 165 265 360
90L 2 , 4 , 6 , 8 390
100L 2 , 4 , 6 , 8 28 60 8 24 215 180 250 0 4 - Φ1 5 4 205 175 300 435
112M 2 , 4 , 6 , 8 28 60 8 24 215 180 250 0 4 - Φ1 5 4 225 190 315 440
132S 2 , 4 , 6 , 8 38 80 10 33 265 230 300 0 4 - Φ1 5 4 270 220 370 510
132M 550
160M 2 , 4 , 6 , 8 42 110 12 37 300 250 350 0 4 - Φ1 9 5 320 260 435 670
700
180M 2 , 4 , 6 , 8 48 110 14 42 . 5 300 250 350 0 4 - Φ1 9 5 360 265 440 720
760
200L 2 , 4 , 6 , 8 55 110 16 49 350 300 400 0 4 - Φ1 9 5 400 305 505 780
225S 4 8 60 1 40 18 53 400 350 450 0 8 - Φ1 9 5 450 325 550 815
225M 2 55 110 16 49 400 350 450 0 8 - Φ1 9 5 450 325 550 810
4 , 6 , 8 60 1 40 18 53 840
250M 2 60 1 40 18 53
58		 500 450 550 0 8 - Φ1 9 5 510 380 655 920
4 , 6 , 8 65
280S 2 65 1 40 18 58 500 450 550 0 8 - Φ1 9 5 550 395 670 965
4 , 6 , 8 75 20 67 . 5
280M 2 65 18 58 1015
4 , 6 , 8 75 20 67 . 5
