CNC Spherical Nodes Processing Machine for Steel Frame

Product Description

Product Description
1. This machine is special designed for processing all holes on spherical nodes.
2. It adopts the combination of advanced CNC machining technology and high-performance programming software, the processing tools can be automatically selected and replaced according to different procedures, and the spindle speed of the machine can be automatically changed to complete different workpieces, different angles, different apertures, and other multi-procedures.
3.Due to the concentration of processes and automatic tool change, the machining reduces the workpiece clamping times and the turnaround time between processes, and also reduces the labor intensity.
4. High efficiency, low cost, Strong adaptability;
5. 24 pcs tools in the tool magazine, automatic tool change during machining;
6. Auto generation of processing procedures, less production preparation time.
7. CNC turntable center positioning, increase machining accuracy.

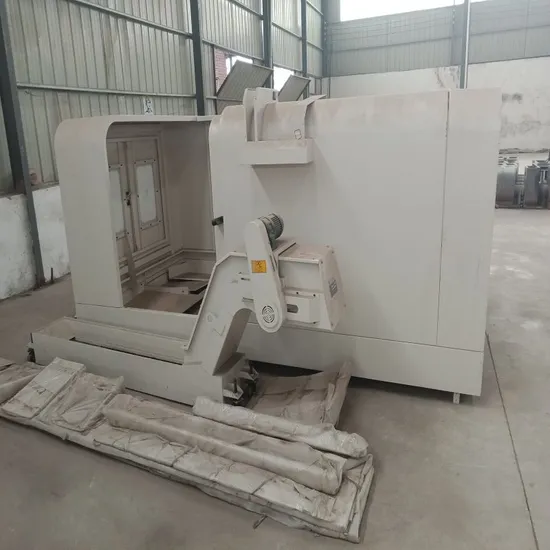

Detailed Photos

Product Parameters

Ball diameter	85-200mm
Hole diameter	M16-M45mm
Processing time(eight holes)	6-14(min)
Dimension	2700*2000*1500mm
Capacity of tools magazine	24
Type of tool magazine	Magic hand
Axial bearing capacity	1000KN
Tilting moment	1600KN
Clamping mode	Special tools for clamping
Weight	35000kg
Main spindle power	11kw
X/Y/Z spindle power	3.9kw
Other motor power	1.5kw
Accuracy of processing	+0.05mm
Ball center alignment accuracy	+0.1mm
