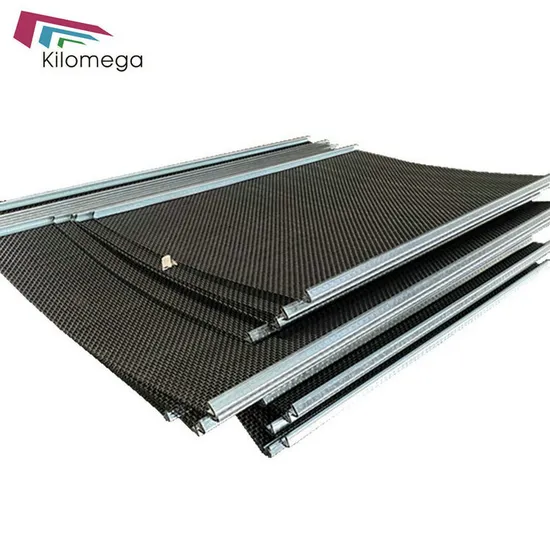

Quarry Stone Crusher 65mn Hooked Vibrating Screen Mesh
Basic Info.
Model NO.
1.5*2.0m
Material
High Carbon Iron Wire
Application
Screen, Quarry Mining
Hole Shape
Square
Weave Technique
Plain Weave
Weave Method
Locking Bend
Feature
Wear Resistant
Wire Diameter
6.0mm
Color
Black
Packaging
Pallet
Certification
ASTM, ISO9001, RoHS, CE
Wire Dia.
0.2mm to 15mm
Colour
Black, Red, White, etc.
Open Size
0.5-400mm
Edge Type
Flat Edge or Hooked Edge
Apertue Tolerance
+-3%
Width
0.5m to 6m
Steel Gradet
45#, 55#,65mn,72b
Tensile Strength
More Than 1000-1800MPa
Length
0.5m to 30m
Specifications
1.5*2m 2*2m 2*2.5m 2*3m
Transport Package
Pallet
Specification
1.5*2.0
Trademark
KILOMEGA
Origin
Ningbo, China
HS Code
84749000
Production Capacity
200ton/Month
Packaging & Delivery
Package Size
150.00cm * 200.00cm * 10.00cm
Package Gross Weight
100.000kg
Product Description
Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Our pre-crimped woven wire mesh is available in intercrimp, lock crimp, plain weave and flat top woven styles, and it is ideal for architectural applications. 1. Angle: 30 degrees, 45 degrees 2. Crimped wire mesh Shape: v-shaped, u-shaped 3. Hook crimped woven wire mesh Hook type: positive check, positive check 4 . Woven wire mesh Material: Stainless steel wire,45Mn steel,65Mn steel,high carbon steel, carbon steel, nickel steel and nonferrous wire. 5 . Hook crimped woven wire mesh Weaving type: Plain, intermediate, crimped 6 .Process: Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave. 7 . Hook woven wire mesh Application: Screening in mine, petroleum, chemical, building and food industry. Used in machinery parts, packing, barbecue, hardware products, handicrafts, wire baskets, food machinery, road and railway, etc. Also used in screening and grading of solid materials and filtering of liquid and quarry, etc.
| Aperture mm | Aperture Tolerance mm | Wire mm | Edge Length mm | Weight kg/m2 | ||
| Minimum | Maximum | Minimum | Maximum | |||
| 101.60 | 98.55 | 104.65 | 12.70 | 12.70 | 50.80 | 17.92 |
| 88.90 | 86.23 | 91.57 | 12.70 | 12.70 | 44.45 | 20.16 |
| 76.20 | 73.91 | 78.49 | 12.70 | 12.70 | 38.10 | 23.04 |
| 63.50 | 61.60 | 65.41 | 12.70 | 12.70 | 31.75 | 26.88 |
| 63.50 | 61.60 | 65.41 | 9.19 | 9.19 | 31.75 | 14.76 |
| 57.15 | 55.44 | 58.86 | 9.19 | 9.19 | 28.58 | 16.17 |
| 50.80 | 49.28 | 52.32 | 12.70 | 12.70 | 25.40 | 32.26 |
| 50.80 | 49.28 | 52.32 | 11.10 | 11.10 | 25.40 | 25.28 |
| 50.80 | 49.28 | 52.32 | 9.19 | 11.10 | 25.40 | 17.88 |
| 50.80 | 49.28 | 52.32 | 7.92 | 7.92 | 25.40 | 13.57 |
| 44.45 | 43.12 | 45.78 | 9.19 | 9.19 | 22.23 | 20.00 |
| 44.45 | 43.12 | 45.78 | 7.92 | 7.92 | 22.23 | 15.21 |
| 41.28 | 40.04 | 42.51 | 9.19 | 9.19 | 20.64 | 21.25 |
| 41.28 | 40.04 | 42.51 | 7.92 | 7.92 | 20.64 | 16.19 |
| 38.10 | 36.69 | 39.24 | 9.19 | 9.19 | 19.05 | 22.68 |
| 38.10 | 36.69 | 39.24 | 7.92 | 7.92 | 19.05 | 17.31 |
| 38.10 | 36.69 | 39.24 | 7.19 | 7.19 | 19.05 | 14.49 |
| 31.75 | 30.80 | 32.70 | 9.19 | 9.19 | 15.88 | 26.20 |
| 31.75 | 30.80 | 32.70 | 7.92 | 7.92 | 15.88 | 20.08 |
| 31.75 | 30.80 | 32.70 | 7.19 | 7.19 | 15.88 | 16.85 |
| 28.58 | 27.72 | 29.43 | 7.92 | 7.92 | 14.29 | 21.83 |
| 28.58 | 27.72 | 29.43 | 7.19 | 7.19 | 14.29 | 18.35 |
| 25.40 | 24.64 | 26.16 | 7.92 | 7.92 | 12.70 | 23.91 |
| 25.40 | 24.64 | 26.16 | 7.19 | 7.19 | 12.70 | 20.14 |
| 19.05 | 18.48 | 19.62 | 5.72 | 5.72 | 9.53 | 16.78 |
| 15.88 | 15.40 | 16.35 | 4.50 | 4.50 | 7.94 | 12.62 |
| 11.00 | 10.67 | 11.33 | 4.00 | 4.00 | 5.50 | 13.55 |
| 10.00 | 9.70 | 10.03 | 4.00 | 4.00 | 5.00 | 14.51 |
| 8.00 | 7.76 | 8.24 | 4.00 | 4.00 | 4.00 | 16.93 |
| 6.35 | 6.16 | 6.54 | 2.67 | 2.67 | 3.18 | 10.04 |
| 6.30 | 6.11 | 6.49 | 2.50 | 2.50 | 3.15 | 9.93 |
| 4.00 | 3.88 | 4.12 | 2.00 | 2.00 | 2.00 | 9.31 |
| 3.00 | 2.91 | 3.09 | 2.00 | 2.00 | 2.00 | 11.17 |
| 2.00 | 1.94 | 2.06 | 1.50 | 1.50 | 1.50 | 8.99 |
