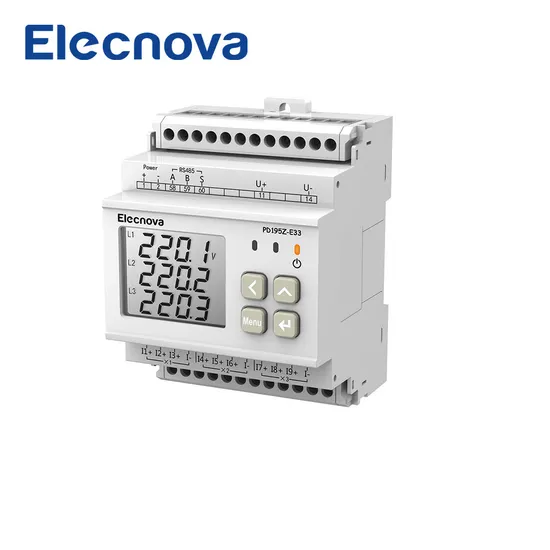

Digital Data Logger DC DIN Rail Mounted 16 Multi Channel Energy Meter
Basic Info.
Model NO.
PD195Z-E33
Installation
Direct Connected
Usage
Multi-Functional Energy Meter
Electric Equipment
Three-phase Three-wire
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Power Meter
Certification
ISO, CE
Customized
Customized
Phase
Three Phase
Measuring Energy Range
0-999999
Accuracy Class
0.2%/0.5%
Output Voltage
230V
Rated Voltage
DC 40-1000V
Communication Interface
RS485
Current Signal Input
Hall Transformer DC-4V
Frequency
45-65Hz
Measuring
V/a/P/E
Rated Current
External Hall Sensor
Communication
RS-485/Modbus/2-Wire
Standard
IEC-62053
Specification
72*90*63.5mm
Trademark
ELECNOVA
Origin
China
HS Code
9030809090
Production Capacity
20000PCS/Per Month
Packaging & Delivery
Package Size
11.00cm * 9.00cm * 9.00cm
Package Gross Weight
0.500kg
Product Description
Digital Data Logger DC DIN Rail Mounted 16 Multi Channel Energy MeterProduct Description
PD195Z-E33 is used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.
Technical Specifications
| Display mode | LCD | |
| Accuracy | U/I/P | 0.5 Class |
| Energy | 1 Class | |
| Voltage Input | Rated value | DC 40-1000V direct access |
| Overload | Continuous:1.2Vn | |
| Power consumption | ≤0.2W | |
| Impedance | ≥6MΩ | |
| Current Input | Rated value | DC 0-4V(external hall sensor) |
| Overload | Continuous:1.2In | |
| Power consumption | ≤0.1mW(each channel) | |
| Auxiliary Power Supply | Working Range | AC,DC 80~270V, 50/60Hz |
| Consumption | ≤5VA | |
| Communication | RS485,Modbus-RTU ,2-wire,up to 9600bps | |
| Digital input | Optocoupler isolation,dry contact type (optional EK1 module) | |
| Relay output | Contact capacity: AC 250V/5A, DC 30V/5A | |
| Environment Conditions | Operating temperature | -20ºC~70ºC |
| Storage temperature | -30ºC~80ºC | |
| Relative humidity | ≤93% | |
| Altitude | ≤2500m | |
| Insulation | ≥2kvac |
Application
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
