Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System
| US$0.013-0.026 | 1,000 W (MOQ) |
Basic Info.
Model NO.
Solar Tracker
Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial, Steel Solar Mounting System for Solar Module
Specification
Normal, Aluminum Alloy
Material
Aluminum Alloy
Type
Solar Panel Mounting Accessories
Wind Load
60m/S
Snow Load
1.4kn/M2
Product
Flat Single Axis Solar Tracking System
Transport Package
Shrinking Film, Carton, Wooden Pallet or by Custom
Trademark
SP
Origin
China
HS Code
76109000
Production Capacity
50000ton/Year
Product Description
/Dual Axis Solar Tracking System/· Higher efficiency, +10%-25% more energy
· No back shadows design for bi-facial solar modules
· Simple structure: Easy for installation and maintenance
· Less power consumption: Only about 3-5kWh/set/year
· High frame strength: Better wind-resistance performance
· Reliable technology, low failure rate, high tracking accuracy
· Smart control, self-positioning & self-correction, low O&M cost
· Rain wash mode: Effectively reduce your solar panels washing times
· Snow prevention mode: Effectively increase your power generation time
· Single row type or small linkage type: Btter terrain adaptability
· High polymer material for rotating parts: Free maintenance for 25 years
/Technical Date/
| Item | Parameter |
| System Type | Single Row Type/2-5 Rows Linked |
| Control Mode | Time + GPS |
| Average Tracking Accuracy | 0.1°-2.0°(adjustable) |
| Gear Motor | 24V/1.5A |
| Output Torque | 5000 N.M |
| Tracking Power Consumption(Per Set) | 5kWh/year/set |
| Azimuth Angle Tracking Range | +-50° |
| Elevation Angle Tracking Range | 50° |
| Back Tracking | Yes |
| Max. Wind Resistance in Horizontal | 40 m/s |
| Max. Wind Resistance in Operation | 24 m/s |
| Material | Hot-dipped galvanized>65μm |
| System Guarantee | 3 years |
| Working Temperature | -40°C - +75°C |
| Technical Standard & Certificate | CE, TUV |
| Weight(Per Set) | 200-400 KGS |
| Total Power(Per Set) | 5kW-40kW |

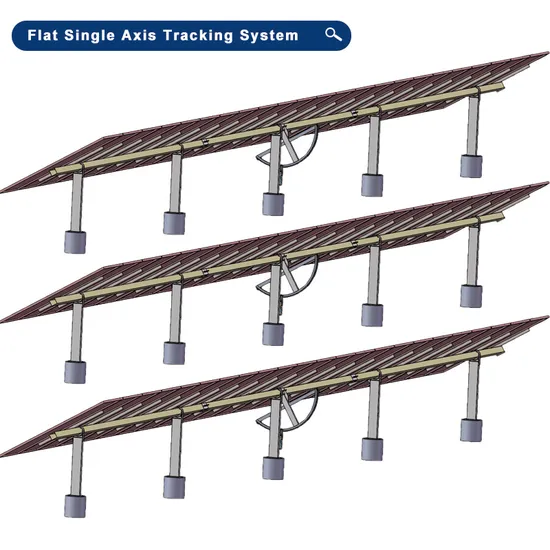

/Main Parts of Flat Single Axis Solar Tracking System/
| Item | Description | Size(mm) |
| 1 | Driving Vertical Pole | |
| 2 | Supporting | |
| 3 | Plastic Bearing | |
| 4 | Purlin Connections | Width: 34mm |
| 5 | Gear Ring | |
| 6 | Chain Link | |
| 7 | Spindle Connector | |
| 8 | Prulin | Length: 1750mm |
| 9 | Center Beam | Length: 8792mm |
