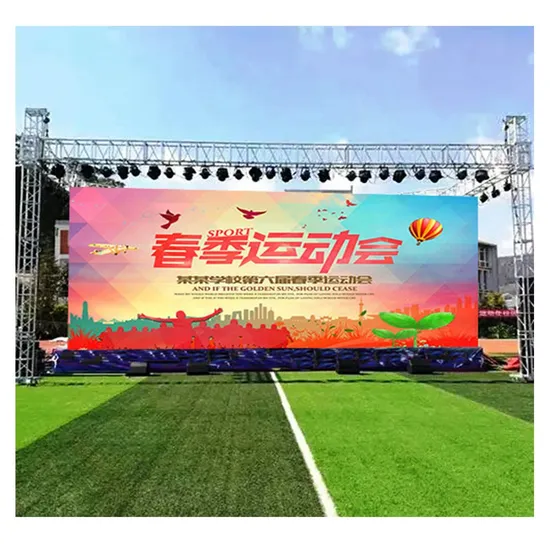

Full Color HD LED Video Wall 1080P 2K 4K P3.91 Stage Giant Screen Outdoor Rental LED Display

Product Description

Full Sexi video wall 1080P P3.91 Rental Stage Giant Screen Outdoor LED Display for EventsProduct Parameters

model	P2.6	P2.97	P3.91	P4.81
Pitch Size	2.604mm	2.976mm	3.91mm	4.81mm
Module Size	250*250mm	250*250mm	250*250mm	250*250mm
Module Pixel(dots)	96dots*96dots	84dots*84dots	64dots*64dots	52dots*52dots
Pixel Configuration	1 Red, 1 Green, 1 Blue SMD 3-in-1	1 Red, 1 Green, 1 Blue SMD 3-in-1	1 Red, 1 Green, 1 Blue SMD 3-in-1	1 Red, 1 Green, 1 Blue SMD 3-in-1
Color scale	65536degree/16777216colors	65536degree/16777216colors	65536degree/16777216colors	65536degree/16777216colors
Pixel density	147456pixels/square meter	112900pixels/square meter	65536pixels/square meter	43264pixels/square meter
View angle(H/V)	≥160/140degree	≥1460/140degree	≥160/140degree	≥160/140degree
Brightness	≥5500cd/square meter	≥5500cd/square meter	≥5500cd/square meter	≥5500cd/square meter
Brightness adjustment	64 level automatic or manual	64 level automatic or manual	64 level automatic or manual	64 level automatic or manual
View distance	3--200m	3--200m	4--200m	5--200m
Power consumption	100-1200W/square meter	100-1200W/square meter	100-1200W/square meter	100-1200W/square meter
Net weight	30kg/square meter	30kg/square meter	30kg/square meter	30kg/square meter
Operating temperature	-25°C~+60°C	-25°C~+60°C	-25°C~+60°C	-25°C~+60°C
Operating humidity	10%-95%RH	10%-95%RH	10%-95%RH	10%-95%RH
Life time	≥100,000hours	≥100,000hours	≥100,000hours	≥100,000hours
Exchange frame speed	>150frames per second	>150frames per second	>150frames per second	>150frames per second
Refresh frame frequency	1920Hz/3840Hz	1920Hz/3840Hz	1920Hz/3840Hz	1920Hz/3840Hz
Control distance	120m (without repeater), single mode fiber:20km, multi mode fiber: 500m	120m (without repeater), single mode fiber:20km, multi mode fiber: 500m	120m (without repeater), single mode fiber:20km, multi mode fiber: 500m	120m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power	110V/220V±15% 50Hz	110V/220V±15% 50Hz	110V/220V±15% 50Hz	110V/220V±15% 50Hz
Operating system	Windows series	Windows series	Windows series	Windows series
Drive mode	constant current driving, 1/24 scan	constant current driving, 1/21 scan	constant current driving, 1/16 scan	constant current driving, 1/13scan
Protection Level	IP65	IP65	IP65	IP65
Maintenance way	Rear access	Rear access	Rear access	Rear access
Accepting signal	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

Product Description
Outdoor led display description:1\ Outdoor LED display models are mainly named according to the different center distances between LED points. For example, P3 model means that the center distance between points is 3mm, P4 means that the center distance between points is 4mm, and so on. At present, the main models of outdoor LED display screens are: P2.5, P2.604, P2.976, P3, P3.91, P4, P4.81, P5, P6, P8 and P10.P2.604, P2.976, P3.91, P4.81 outdoor LED display are assembled by die-casting aluminum cabinets, which are very easy to install. Each cabinet contains a quick-installation lock, which is generally used in the stage background of concerts, churches, weddings, exhibitions, fashion shows and other occasions, so it is also called stage LED screen or LED Rental screen.2\How to choose the model of LED displayThe led display screen with the same size, the smaller the point spacing, the higher the definition, and the better the display effect of the LED screen. Of course, its price is more expensive; For example, for the same size LED screen, the display effect of P2.976 is better than that of P3.91, and the price of P2.976 is more expensive than P3.91; Therefore, if the price is not considered, the clarity of small spacing is the highest and the effect is the best;Different LED screen sizes and different viewing distances, the corresponding models are recommended.

Area of LED screen	Recommended model
≤10 m2	P2.5
10-20 m2	P2.5\P2.604\P3
20-40 m2	P2.5\P2.604\P2.976\P3\P3.91\P4
40-60 m2	P2.5\P2.604\P2.976\P3\P3.91\P4\P4.81\P5
≥60 m2	P2.5\P2.604\P2.976\P3\P3.91\P4\P4.81\P5\P8\P10

Various models of outdoor LED display links:

P2.5 Outdoor led display

P3 outdoor led display

P4 outdoor led display

P5 Outdoor led display

P8 outdoor led display

P10 outdoor led display

P2.976 Outdoor led display

P3.91 Outdoor led display

P4.81 Outdoor led display

Features of outdoor led display screen:
(1) Outdoor LED screen is a large outdoor display screen with LED as display device, which has the characteristics of high brightness, high definition, high refresh rate and bright colors, and is suitable for outdoor environment. Its main features and uses are as follows:
(2) High brightness: the brightness of ≥ 5000 CD, which can clearly display images and words in the sun, ensuring that the audience can see the contents on the screen clearly when they are far away or moving.
(3) High definition High color fidelity: it can present clear and delicate images and words, and bring excellent visual experience to the audience.
(4) High refresh rate,160-degree viewing angle: the refresh rate of ≥3840HZ is adopted to ensure the stability and smoothness of the picture;
(5) Bright colors: High-quality LED with high brightness and high contrast can present bright and vivid color effects, making the audience feel as if they were there.
(6) Waterproof and dustproof: LED screen adopts cabinet structure, and each LED module is filled with waterproof resin glue, which has good waterproof, dustproof and forced convection heat dissipation performance, and can be used in harsh outdoor environment for a long time, ensuring its stability and durability.
(7) Seamless splicing of LED large screens
(8) Easy installation and maintenance
(9) High reliability, long lif
Application of outdoor led display:
(1) Commercial advertising: It is widely used in the commercial field, such as advertising and brand display in shopping malls, supermarkets, hotels and other places.
(2) Public information release: It can be used to release information in public places, such as weather forecast and news information in bus stations, railway stations, airports, transportation hubs, parks and scenic spots.
(3)Sports event broadcast: It plays an important role in sports events, such as the display of real-time scores, timers and other information in football fields, basketball courts, racetracks and other places.
(4)Urban lighting project: it can be used as a part of urban lighting project to add color and vitality to urban night scenes.
In addition, the outdoor LED display screen also has the development trend of intelligent control, and remote control and operation management are realized through the Internet of Things technology and big data analysis, so as to improve the use efficiency and user experience.Full Color LED Video Wall High Refresh Event Rental Stage Easy Install P3.91 Indoor Outdoor LED Display*Led rental screen is widely used for stage performances and cultural activities..
*As a customized die cast aluminum cabinet design, outdoor LED rental display are characterized by their waterproof, lightness, thinness, and fast installation
*High definition and seamless splicing create stunning visual effects for the audience
Product Details
Humanized cabinet design, easy to lift and place, easy to install and disassemble.
Die cast aluminum cabinet, thickness less than 80mm, Cabinet weight in 7.5kg/PCS(500mm*500mm).
The cabinet of the rental display have 2 sizes for you to choose : 500*500mm /500*1000mm. Seamless splicing between boxes, adopting a new type of barrier installation structure and modular design. The cabinet is lightweight, easy to disassemble, and easy to maintainEquipment and accessories complete system Hot sale
Company Profile
Qichuang supply all kinds of LED displays,which including indoor LED displays, outdoor LED displays, transparent LED displays, Stage/Rental LED display, Taxi LED display and all customized LED displays based on customer's requirement.
Our advantage
Our product case
Packaging & Shipping
FAQ
1. Experienced&Professional:
18-year manufacturing experience on LED displays, professional workmanship & design.
2. Best raw materials:
high quality LED chip,high brightness and long life span.
3. Competitive price:
100% factory price,competitive and reasonable price.
4. Strict quality control:
The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that everyproduct is qualified.
5. Quality guarantee:
All our LED display screens is more than 100,000 hours life span.
6. Long warranty:
3-5- year warranty, any quality problem during warranty time will be handled .
7. Prompt &Professional service:
Any inquires will be replied within 24 hours and you'll get helpful suggestions from us.
Your questions
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P1.25, P2, P3 P4.....P8,P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Best raw materials: 3. Competitive price: 6. Long warranty:7. Prompt &Professional service:
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, thedesired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q6:Can I order a sample?
A:Yes, your sample orders are welcome, after checking our quality and service, we are confident that you will come back for your future orders.
After Sales Service
1. Free guarantee repair (including labor and material): free for repair service in Qualitywarranty period and reasonable charge for spare parts and maintaining service afterthe quality warranty period.
2. Responding time: upon receiving user's notification, we ensure 24 hours after-salestechnical support.
3. Spare parts: necessary spare parts are provided together with products to
customers.When your screen have problem, please call us, email us, or through the Skype,Wechat, WhatsApp, QQ etc to tell us the detailed fault information (if the fault could bepresented by pictures, please take pictures and send them to us as possible as youcan),Our after-sales service engineers will offer technical support and guidance basedon your description.
A. Real-time communication service
We can provide customer services through TM, Email, Skype,Wechat,WhasApp, QQ etc.
B. Remote control service
We can operate the customer's computer remotely via Internet, to install and set up software for customers, and to dispose of the technical fault of LED display system software.
C. Post Service
Under warranty, customers could send the defective components back to us; we will repair them and return to you as soon as we can.
The shipping cost from the buyer to the supplier is covered by the User. The shipping cost from supplier to the Buyer will be paid by the supplier.
