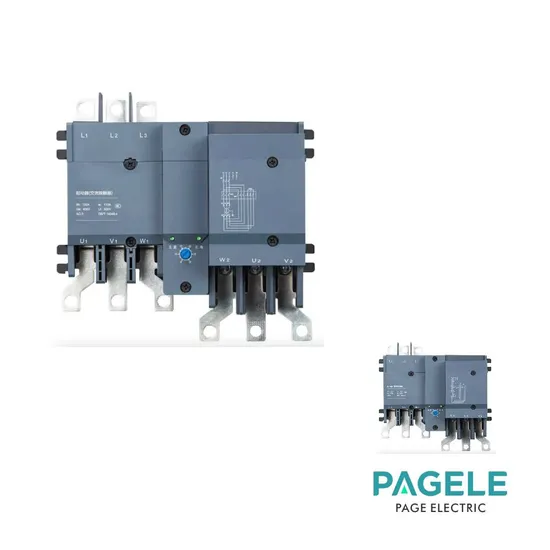

Three Phases Start Delta Moter Starter (Contactor installed already)
| US$20.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KS1
Phase
3
Main Circuit Rating Voltage
380V
Main Circuit Rating Current
200A
Type
Ac Contactors
Function-1
Motor Start
Function-2
Manual Starter Protection
Function-3
LCD Program Start
Current
16A to 110A
Transport Package
Carton
Specification
210 x 170 x 151
Trademark
OEM
Origin
China
HS Code
853650090
Production Capacity
100000/Month
Packaging & Delivery
Package Size
210.00cm * 170.00cm * 151.00cm
Package Gross Weight
3.000kg
Product Description
Three phases Start Delta MOTER STARTERIntroduction The KS series smart contactor is a new solution product launched using a integrated technology to meet the demands of voltage reduced motor starter.
Product Features
1. Smaller size and space saving
2. Less wiring and cost saving
3. Intelligent star delta conversion, no need extra electrical interlock and more safer
4. Optimize the starting process of the motor and improve its service life.
Product Specs.
| ltem | Unit | KS Series | ||||||||||||||||
| Rated working current le(AC-3) | A | 18 | 25 | 32 | 40 | 50 | 65 | 75 | 85 | 95 | 100 | 110 | 120 | 160 | 185 | 225 | 265 | |
| Rated working voltage Ue | V | 380V/400V | ||||||||||||||||
| Rated insulation voltage U | V | 690 | 800 | 1000 | ||||||||||||||
| Poles | P | 3 | ||||||||||||||||
| Electrical life | times | 60 | ||||||||||||||||
| Mechanical life | times | 600 | ||||||||||||||||
| Manual(M)type mechanical life | times | 10000 | ||||||||||||||||
| Motor power(AC-3) | KW | 11 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 235 | |||
| Applicable fuse | A | 20 | 32 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 300 | 355 | ||||||
| Terminal wiring capacity | mm² | 16 | 35 | 50 | 75 | 150 | ||||||||||||
Coil data | Control voltage (Us) | V | 220V/230V | |||||||||||||||
| Close voltage | %Us | 80%-110% | ||||||||||||||||
| Release voltage | %Us | 20%~75% | ||||||||||||||||
| Coil dose power | VA | 230 | ||||||||||||||||
| Holding power | VA | 19 | 32 | 92 | ||||||||||||||
| Function | Basic type(auto type) | M Emergency manual type | Z Intelligent type |
| Star to delta conversion | |||
| Double speed control | 0 | O | |
| Reversible control | 0 | O | |
| Main-delta separate | 0 | O | |
| Emergency type(Manual) | 0 | 0 | |
| Short circuit linkage | 0 | 0 | |
| Overdoad protection | 0 | O | |
| Motor stall protection | 0 | O | |
| Phase lost protection | 0 | 0 | |
| Three phase unbalance | O | 0 | |
| Over/under voltage protection | 0 | 0 | |
| Fault display | o | 0 | |
| Fault alarm | 0 | 0 | |
| Fault record | o | 0 | |
| Programmble data | 0 | 0 | |
| Status display | 0 | 0 | |
| Fire-linkage | O | o | |
| Communication | 0 | O | |
| Leakage protection | 0 | 0 | |
| Lifecycle management | 0 | O |
Wiring Instruction
Product Application
New generation with intelligent controller able to have multifunction protection, but no short circuit protection, need to use additional circuit breaker for short circuit protection.
