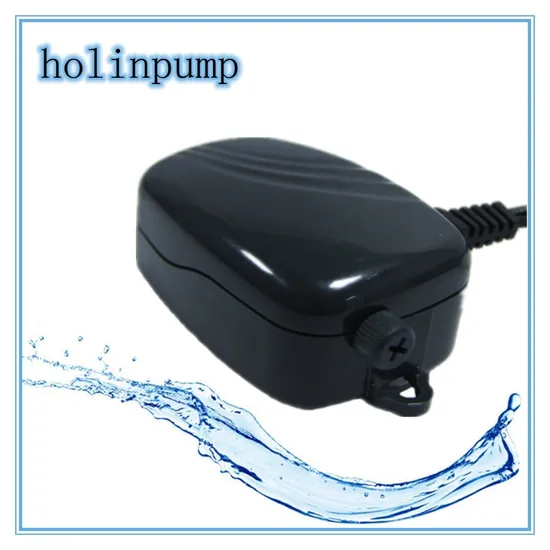

Long Lifespan Pump Mini Aquarium Air Pump Aquarium Pump (HL-AP8801)

Product Description

Long lifespan pump mini aquarium air pump aquarium pump(HL-AP8801)


Instructions to ues:

1, Do not submerge the air pump into the water.

2, Air pump must be above water level

3, Do not oil any time

4, Disconnect the plug if the pump fails down

5, Clean or replace air tubble or stone regulary to abtain maximum air outlet and longer life.

6, Make sure to use the proper valtage

7, Household aquarium use only.

Specs
No.	Size		89.7mmx53mmx35.7mm
1	Voltage		12/24/100-120/220-240V
2	Pressure range		22.5 Kpa
3	Flow rate		1L/Min
4	Noise lent		Silent
5	Power		1.7 W
8	Pump Design:		Double diaphragm, duckbill valves
9	Electrical Connections:		1-ft (300 mm) Insulated wire pair
10	Noise Level:		40 dB unconnected, connected operation will reduce dB level.

Insportant safeguard:

1, Disconnect all the plugs of the electrical appliances before putting hands into the water.

2, We recommend that air pump and other electrical devices,should be connected to power supplies with ground fault circuit interrupters.


Product parameters:

1, Using ABS precision-engineered components.

2, Dual-output high-efficiency;

3, Ultra-quiet low power consumption;

Series product details
Model	Voltage	pressure	Watt	Qmax (L/min)	Frequency	Quter dimensions LxWxH(mm)	Outlet	Aquarium
HL-AP8800	12/24V 100-120/220-240V	13Kpa	1.5W	0.95	50Hz/60Hz	80.5x37.4x32	Single	80-200L
HL-AP8801	12/24V 100-120/220-240V	22.5Kpa	1.7W	1	50Hz/60Hz	89.7x53x35.7	Single	80-200L
HL-AP8802	12/24V 100-120/220-240V	12Kpa	4W	3	50Hz/60Hz	121x75x49	Single	80-200L
HL-AP8803	12/24V 100-120/220-240V	17.5KPA	3.3w	1.9	50Hz/60Hz	93x55.5x34	Single	80-201L
HL-AP8804	12/24V 100-120/220-240V	15Kpa	4.6W	2x5.8	50Hz/60Hz	100x62.7x53	Two	80-200L
HL-AP8805	12/24V 100-120/220-240V	12.5Kpa	2.6W	2.6	50Hz/60Hz	102x65.9x43.5	Single	80-200L
HL-AP8805T	12/24V 100-120/220-240V	15.4Kpa	3.8W	2x3.5	50Hz/60Hz	125.3x84.9x59.7	Two	80-200L
HL-AP8808	12/24V 100-120/220-240V	18Kpa	2.5W	1.8	50Hz/60Hz	120x60x50	Single	80-200L
HL-AP8808T	12/24V 100-120/220-240V	18Kpa	2.5W	2x2	50Hz/60Hz	120x60x50	Two	80-200L
HL-AP8809	12/24V 100-120/220-240V	18Kpa	6W	3	50Hz/60Hz	155x80x60	Single	80-200L
HL-AP8810	12/24V 100-120/220-240V	20Kpa	8W	3.5x2	50Hz/60Hz	155x80x60	Two	80-200L
HL-AP8811	12/24V 100-120/220-240V	20Kpa	12W	3.5	50Hz/60Hz	180x100x70	Single	80-200L
HL-AP8812	12/24V 100-120/220-240V	25Kpa	15W	5.5x2	50Hz/60Hz	180x100x70	Two	80-200L

Holinpump Company Profile:

Zhongshan Holinpump manufacturer of all kind of pumps(such as amphibious ECO pumps, fountain pumps, submersible filter pumps, solar DC pumps, air pumps), aquarium tank, Garden lighting, mist maker, power adapter,air stones and some other accessories ...which are with the nature of efficiency, power saving, safety and style and other accessories to the world, over 14 years. All of our products are carefull tested.


Long lifespan pump mini aquarium air pump aquarium pump(HL-AP8801)
