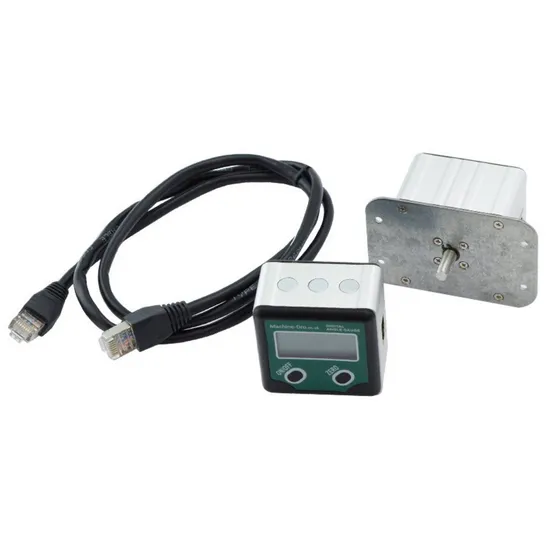

Rotary Angle Encoder and Remote Display, with a 6mm Diameter Shaft. Angle Tilt Inclinometer.

Product Description

Details The remote display has the on/off button and a zero function button allowing the display to be set to zero degrees in any position. The rotary encoder has a flat steel flange with four mounting holes and 6mm diameter shaft. The Display is linked to the rotary encoder by a standard RJ45 cable. This allows the display and encoder to be disconnected. A 900mm cable is included The gauge is powered by a standard CR2032 battery located behind a twist lock compartment on the rear of the display We would recommend that 5 metres is the maximum cable length when using the Angle Tilt Sensor/Inclinometer. Cables can be extended to 5 metres but please note that this must be a RJ45 Cat 5 lead that is screened. If not not there may be interference issues Please Note: The rotary encoder must not be used at high speed/rpm. Protect encoder from coolant and moisture ingress Applications Include: Rotary tables, Dividing heads, Angle table, Telescopes, Tilting angle plates, Milling machine head angle etc Range: 0-360 degrees (360 degrees displays as 0.0 degrees and will continue to count up) Accuracy - +/-0.1 degrees Weight(g) Type Brand MPN GTIN Condition Display Type

220.000000

Digital Angle Finder

Machine DRO

ME-AN-REM-ROT

5055396108583

new

Digital
