Advanced Soil Bearing Capacity Tester for Static Plate Load

Product Description

Product Description

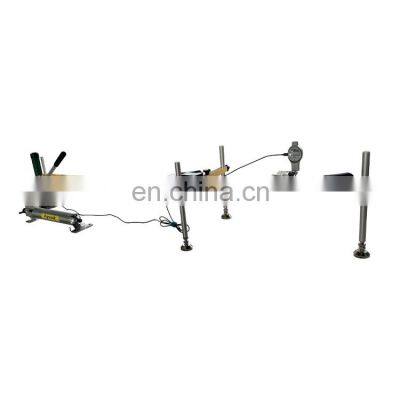

Product Usage and FeaturesEv2-W Plate Bearing Test Set Static Deformation Testing MachineUSAGE OVERVIEW:Ev2 Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil building subjected to static load.After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.ParametersProductStatic Deformation Testing Plate Bearing Test SetApplicationEffective depth0~ 500mmWorking ambientWorking ambient -10℃~40℃ Humidity <90%HRElecteic sedimentation meterSizeScreen size:5inchOverall size:145×70×10mmNet weight:110gStorage amount10GPowder supplyLithium battery, over 18hrs continuous work timeDisplay methodChinese/EnglishLocationGPSPrinterConnection methodWireless Bluetooth printerTransducerPressure range100kNDisplacement range25mmDisplacement resolution0.01mmMeasure deviceBearing plateDiameter:300mmThickness:25mmWeight:17.5kgLoading deviceHydraulic pump:100kNhigh pressure tube:2mOil cylinder extensible rod:1*90mm,1*120mm,1*160mm,1*160mm,2*60mmSedimentation measure deviceThree point frame (with flexible and rotary lever arm, adjustable base)Dimension:2320*570*420mmWeight:12.5kg1. Automatically calculate Ev1/ Ev2 and Ev2/Ev1 values and display curves.2. GPS Precise positioning.3. Bluetooth micro printer can print on the spot.4. Adopts heavy profile and three-point support design.5. USB transmission interface, easy to connect with the computer.Product DetailsApplicationContact USCangzhou Lovely Technology Co., Ltd Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, With advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ? 1. Get our in-time reply via email or telephone or instant messenge. Our product specialist will guide you find the suitable product according to your requirement; 2. Get best product with excellent quality and competitive price;3. One year guarantee for whole machine and in time technical support by video or email. Always enjoy our considerable & full-side after-sales service;4. Feeling very convenient since we can help you source and ship products from different factories via one shipment, which is significant to save your time and cost;5. Easily make the payment via West Union, Paypal, Credit Card for small value order;
