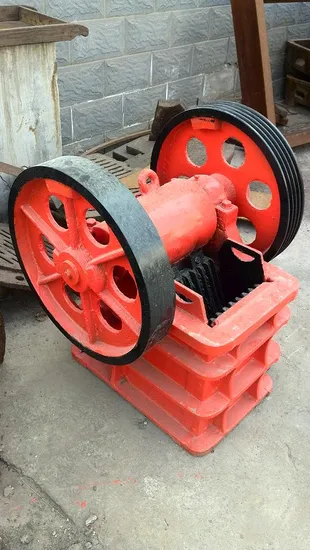

Mini Jaw Crusher, PE150*250 for Small Scale Mine
| US$800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
PE150*250
Cutter Material
Jaw Plate
Drive
Electric
Object
Iron Ore
Installation
Offer Technical Support
Certificate
CE, ISO9001: 2000
Color
Alternative
Condition
New
Model Number
PE/Pex Series
Range of Adjustable Discharging Opening
10-300
Warranty
1year
Capacity(T/H)
1-600
After Sell Service
Except The Quick-Wears
Eccentric Shaft Speed
200-330r/Min
Type
Jaw Crusher
Compressive Strength (For Crushing)
>300MPA
Principle
Crush
Finished Surface
Crush
Tongs′ Features
Large Crushing Ratio
Transport Package
Standard Containers
Specification
PE150*250
Trademark
HengXing
Origin
China
HS Code
84742090
Production Capacity
3t/Hr
Product Description
Jaw crusherJaw crusher composition-structure:
Jaw crusher is made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function.
Jaw Crusher features:
1. Simple structure and reliable operation
2. Easy maintenance and low operating cost
3. The frame of jaw crusher is very firm due to removing welding residual stress
Jaw crusher operating:
Please carefully examine the fasteners, especially lubrication components and bolts, before the machine is started. Enough oil must be needed on each lubrication component. Fasten the loose bolts, clear the crushing cavity, and then start the machine. During the normal operation, even material feeding is important. Insufficient load or over load is not allowed. Moving jaw plate, fixed jaw plate, side guard plate and roof plate are wearing parts, and much attention should be paid to them.
We mainly produce rock crusher, stone crusher, including large jaw crusher, many models of jaw crusher, impact crusher, hammer crusher, combination crusher and stone crushing plant.
Jaw crusher parameter:
| Model | Size of Feed Opening (mm) | Max FeedSize (mm) | Discharge Range Opening (mm) | Capacity(m3/h ) | Motor Power(kw) |
| PE-250× 400 | 250× 400 | 210 | 20-60 | 3-13 | 15 |
| PE-400× 600 | 400× 600 | 340 | 40-100 | 10-35 | 30 |
| PE-500× 750 | 500× 750 | 425 | 50-100 | 25-60 | 55 |
| PE-600× 900 | 600× 900 | 500 | 65-180 | 30-85 | 55- 75 |
| PE-750× 1060 | 750× 1060 | 630 | 80-180 | 72-150 | 110 |
| PE-800× 1060 | 800× 1060 | 680 | 100-200 | 85-143 | 110 |
| PE-870× 1060 | 870× 1060 | 750 | 170-270 | 145-235 | 110 |
| PE-900× 1060 | 900× 1060 | 780 | 200-290 | 170-250 | 110 |
| PE-900× 1200 | 900× 1200 | 780 | 95-225 | 100-240 | 110 |
| PE-1000× 1200 | 1000× 1200 | 850 | 195-280 | 190-275 | 110 |
| PE-1200× 1500 | 1200× 1500 | 1020 | 150-300 | 250-500 | 160 |
| PEX-150× 750 | 150× 750 | 120 | 18-48 | 5-16 | 15 |
| PEX-250× 750 | 250× 750 | 210 | 25-60 | 8-22 | 22 |
| PEX-250× 1000 | 250× 1000 | 210 | 25-60 | 10-32 | 30-37 |
| PEX-250× 1200 | 250× 1200 | 210 | 25-60 | 13-38 | 37 |
| PEX-300× 1300 | 300× 1300 | 250 | 20-90 | 10-65 | 75 |
