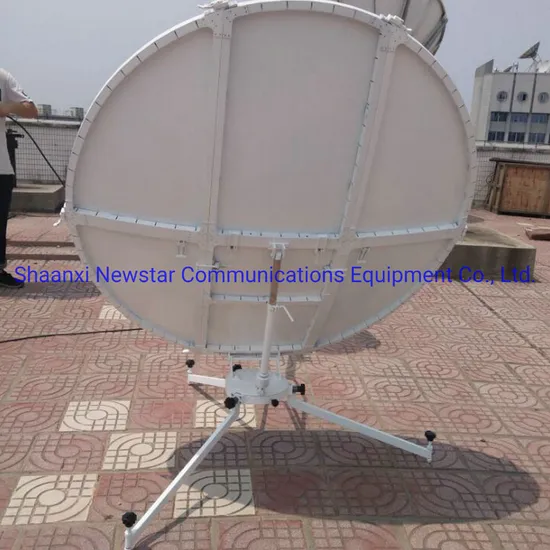

1.2m Manual Flyaway Ku Band Aluminum Panels Satellite Dish Antenna
| US$4,000.00-9,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
NS-FM-120
Usage
Satellite Communication
Wave Range
Ku Band
Type
Outdoor
Antenna Diameter
1.2m
Antenna Type
Offset
Operational Band
Ku Band
Polarisation
Linear
Reflector Material
Aluminum
Drive Mode
Manual
Transport Package
Flyaway Box
Specification
1.2m
Trademark
Newstar
Origin
China
Production Capacity
80 Sets Per Month
Product Description
1.2m manual flyaway ku band aluminum panels satellite dish antennaCharacteristics: 1.Meets or exceeds CCIR 580 and INTELSAT requirements
2.Offset antenna;
3.Light weight,small volume,high accurancy,high strength;
4.High gain, Low sidelobe, high G/T rate;
5.Hot-dipped zinc processed Antenna mount, with strong corrosion resistant ability;
6.Easy to assemble or disassemble in five minutes.
Optional:
LNB,BUC.
ELECTRICAL SPECIFICATIONS
| Antenna Diameter | 1.2m | |
| Band | Ku | |
| | Receive | Transmit |
| Operation Frequency(GHZ) | 10.95~12.75 | 13.75~14.5 |
| Gain(GHZ) | 42.0 | 43.0 |
| 3dB Beamwidth | 1.32° | 1.2° |
| VSWR | 1.3:1 | 1.3:1 |
| Cross-polarization | 35dB | 35dB |
| Isolation,Rx to Tx,dB | 85dB | |
| Power Capacity | / | 1 |
| Polarization | Linear | |
| Feed Interface | WR-75 | |
| First Sidelobe | ≤-14dB | |
| Antenna diameter | 1.2m | |
| Antenna type | Offset | |
| Panel qty | 6pcs | |
| Net.Weight | 23kg | |
| Panel material | Aluminum | |
| Travel Range | Azimuth | ±45°Fine adjustment |
| Elevation | 10°~90° | |
| Polarization | ±90° | |
| Operational wind load | 11m/s |
| Survival wind load | 18m/s |
| Using temperature | -40°C~+60°C |
| Storage temperature | -50°C~+70°C |
| Protective level | IP65 |
